Specifications
Prod Model: |
JY50QT-41 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Red, Yellow, Black |
Engine: |
4 Stroke |
Max Speed: |
>50km/h |
Displacement: |
≤50CC |
Maximum Loading Capacity: |
75-120kg |
Certification: |
COC |
Fuel Tank Capacity: |
<5L |
Folded: |
Unfolded |
Product Description

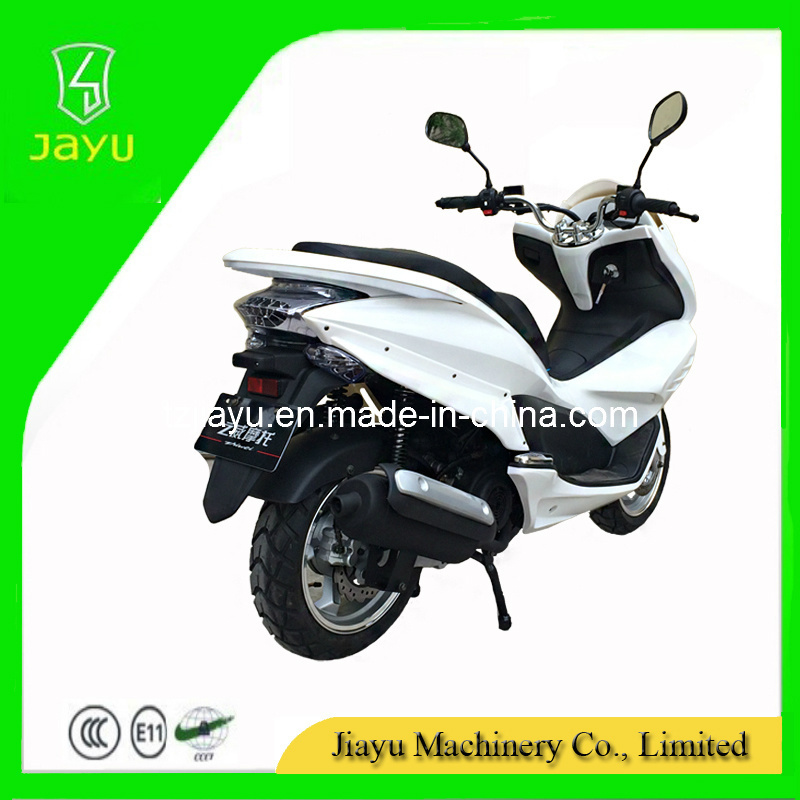

New Fashion Hot Model 50cc Scooter
1. New stylish design/ design patent in China
2. Powerful / 4 stroke/ airl cooled engine
3. Fully automatic CVT transmission for easy driving
4. Scooter gives safety and comfort for high speed cruising
5. Maintenance-free battery
6. Dual eagle-eye style headlight
7. Diamond shape signal light
1, Selling points:
1, It can match multicolor and stickers
2, we can do 125C power, also do we can do 150CC models.
3, Front and rear vacuum tire: Durable, fasten, balanced, and beautiful. The tire is wear-resisting and aiti-explosion.
4, Disc brake has high safety performance and has no noise
Scooter body parameter |
MODEL |
JY50QT-41(Storm-50) |
Dimensions (mm): |
1890 x 715 x 1190 |
Wheel base (mm): |
1295 |
Ground clearance (mm): |
110 |
Dry weight / Load capacity: (kg) |
98 / 150 |
Max.speed (km/h) : |
55 |
Economic fuel consuption (1/100km/L) : |
2.1 |
Exhaust system : |
Mute exhaust |
Fr brake / Rr brake : |
disc/drum |
Fr tyre / Rr tyre : |
120/70-12 |
Fuel tank capacity (L) : |
5 |
Battery |
12V 4AH |
Ignition |
CDI |
Front suspension : |
hydraulic |
Rear suspension : |
Spring shock absorber |
Scooter Engine parameter |
Engine mode: |
139QMB |
Engine type |
1-cylinder,air-cooled, 4-stroke |
Displacement (cc) : |
49.5 |
Cylinder Diameter / Pinston Stroke |
39 x 41.5 |
Transmission system : |
Belt CVT |
Compression ratio |
10.3:1 |
Start system : |
kick / electric |
Standard power(km/r/min): |
2.2/7500 |
Max. torque(n.m/r/min): |
3.5/4500 |
Packing information |
N.W / G.W (KG)/Packing model |
98 / 113; |
Pack model |
Full export carton package |
Packing size(mm) /20GP(CBU) |
1860 X 570 X 1180 / 26PCS |
Packing size(mm) /40HQ(SKD) |
1700 X 570 X 870 / 84PCS |
