Specifications
Prod Model: |
250-5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

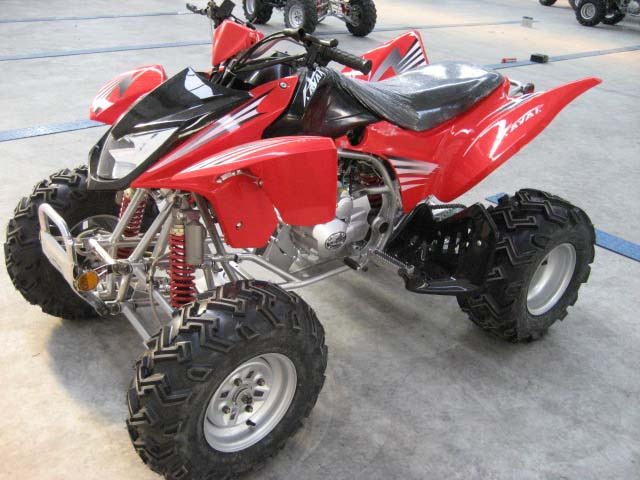

2007 EEC Sport ATV (250-5) (TRX250EX)
ATV Engine:
Type: 250CC, air-cooled/water-cooled, ohv longitudinally mounted single cylinder, 4-stroke
Bore x stroke: 67 x 65
Compression: 9. 0: 1
Ignition: C. D. I.
Starting system: Electric
Max. Power and relevant rotating speed (kw/(r/min)): 12/(6500+/-500)
Max. Torque and relevant rotating speed (n. M/(r/m)): 18. 5/(5500+/-500)
Drive train:
Clutch: Manual coil clutch
Transmission: 5-speed with inside reverse
Driveline: Chain drive
Chassis/suspension/brakes:
Front suspension: Independent suspension double a-arm
Rear suspension: Swing arm with single shock
Front brakes/ rear brakes: Disc
ATV Front / rear tires: 23 x7-10
Dimensions:
Length/ width/ height: 1860/985/1095(mm)
Wheelbase: 1480mm
Seat height: 910mm
Turning radius: 3250mm
Dry weight: 180kg
ATV Fuel capacity: 9. 8 l
ATV Battery: 12V14ah
ATV Qty/container: 14units/20', 28units/40', 42units/40'hq
