Specifications
Prod Model: |
MC-398 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
4 Strokes,Water- Cool,CTV Belt Fully Auto ,500cc |
Color: |
Red/Yellow/White/Black/Grey |
Warranty: |
6 Month |
Ignition Type: |
Cdi |
Vehicle Dimensions: |
2250mmx1150mmx1200mm |
Front Tire Spec: |
25X8-12 |
Rear Tires Spec: |
25X10-12 |
Fuel Tank Capacity: |
22L |
Item Name: |
Quad Bike |
Battery Spec: |
12V,12ah |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
>400CC |
Structure: |
Without Door |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Condition: |
New |
Power: |
>1000W |
Brand: |
Bode |
Product Description

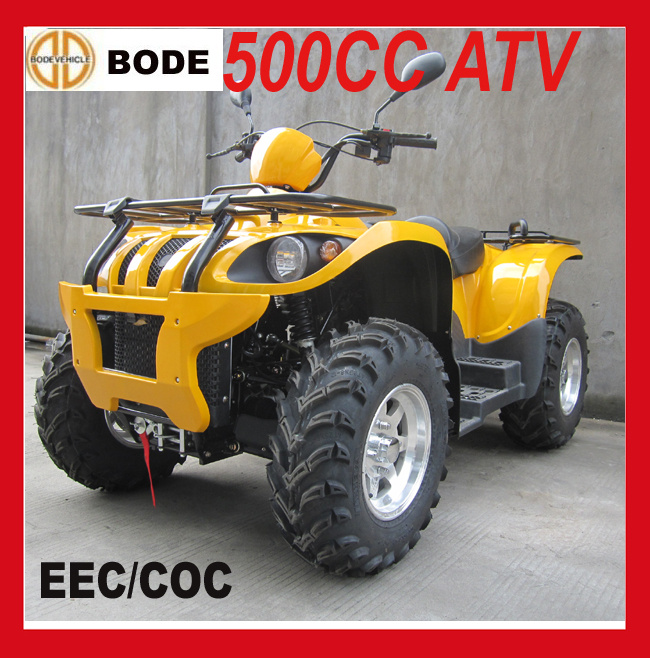

New EEC 500CC 4X4 CHINA ATV(MC-398)
1)Engine: 4 strokes, water- cool, CTV Belt Fully Auto, 500CC 4X4 and Extra Lower Gear
2)Cylinder: Single cylinder
3)Lubrication: Pressure splash
4)Cylinder Bore Diamiter: 92mm(3.63")
5)Piston Stroke: 75mm(2.96")
6)Displacement: 498.6cc
7)Compression Ratio: 10.2: 1
8)start: Electric with a set of keys
9)Transmission: CVT Fully Auto, hand reverse
10)Shaft Driver
11)Gear Shiftting R, N, D, L (Reverse, Neutual, Drive, Low gear)
12)Max Power: 24kw(32.3HP) /6300r /min
13)Max Torge: 40 N. M /4800r /min
14)L xW xH: 2250mmx1150mmx1200mm
15)N. W/G. W: 350kg / 430kg
16)Brake: Front + Rear Disc Brake
17)Fuel capacity: 10.5 L
18)Top speed: 47 MPH
19)suspension: Independent front suspension with adjustable shocks
Heavy duty rear swing arm with adjustable shocks
20)Carton size: 2000*1150*1100mm
21)seat high: Driver: 880mm, Passenger: 960mm
22)Tires: (Ft)25X8-12, (Rt)25x10-12/Ft26X-12, (Rt)26X11-12
23)Colors: Dark green, Camo, Red
24)Rack Capacity: (Fr)35kg, (Rr)70kg
25)configuration Optional: Winch, Aluminum Rings, Towing Hitch, Snow Plow,
Wind Screen, Traveling Bag, Skid Chain
26) Container: 10pcs/20FT 24pcs/40HQ
Atv and go kart HS code: 8703101100
