Specifications
Prod Model: |
HD70Q-10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Cub Motorcycle |
Displacement: |
51-125CC |
Engine Type: |
4-Stroke |
Fuel: |
Gas / Diesel |
Certification: |
CCC |
Condition: |
New |
Engine Size: |
70cc |
Product Description

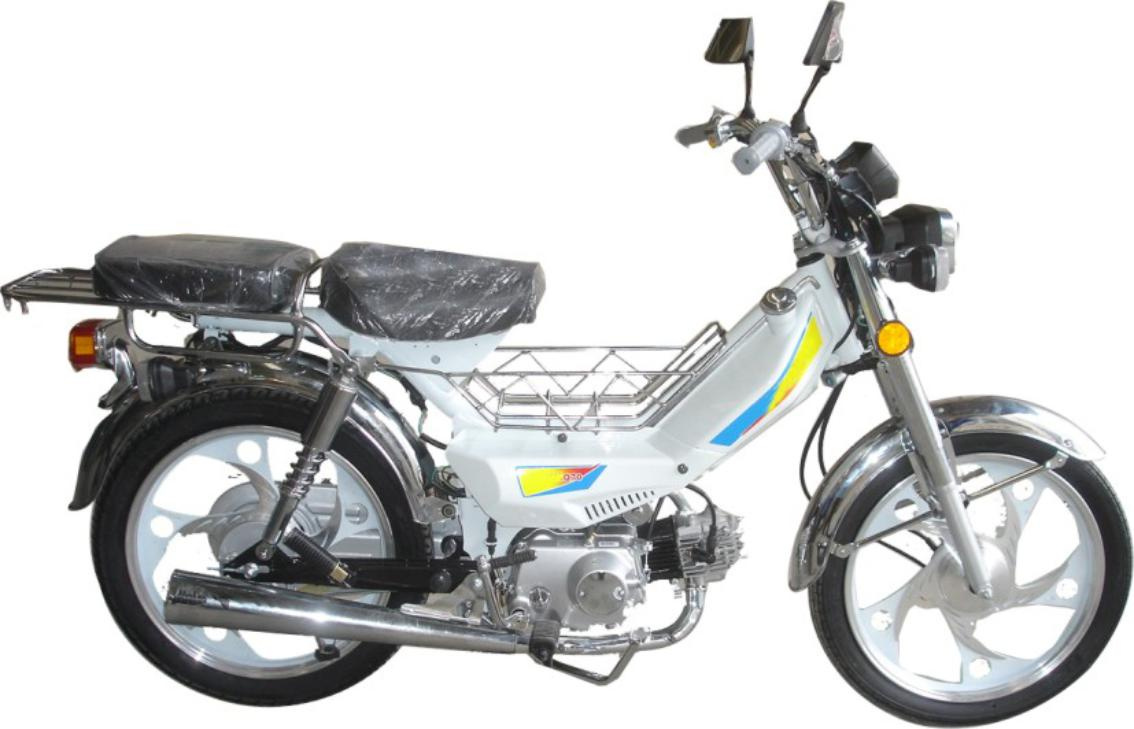

New Design Cub Motorcycle, can be installed 70cc, good quality, Low price.
Specifications/Features:
ENGINE TYPE | 70cc |
Displacement | 72 |
Engine | 1 Cylinder, 4 Stroke |
Bore & Stroke | 47*41.4 |
Cooling System | Air Cooled |
Compression Ratio | 8.8:1 |
Fuel feed | 93# |
Max Power( Kw/rpm) | 4.0kW/7500r/min |
Max Torque(N.M/rpm) | 5.0N.m/4500r/min |
Max Speed | 60kmph |
Ground clearance | 130 MM |
Fuel consumption | 1.9L/100KM |
Ignition | CDI |
Transmission | CHAIN |
Fuel tank capacity | 3.5L |
Starting System | Electric+kick start |
Front Brakes | Drum brake |
Rear Brake | Drum brake |
Front suspension | hydraulic shock absorber |
Rear suspension | spring shock absorber |
Front wheels | Alum 2.50-14 |
Rear wheels | Alum 2.50-14 |
Wheel Base | 1220MM |
Seat Height | 685 MM |
Payload | 110KG |
Net Weight | 79KG |
Gross Weight | 93KG |
Packing type | Steel + Carton |
size | 1850×700×1085mm |
Packing size | 1490×320×860 mm |
20' container | 56units |
40' HQ container | 168units |
