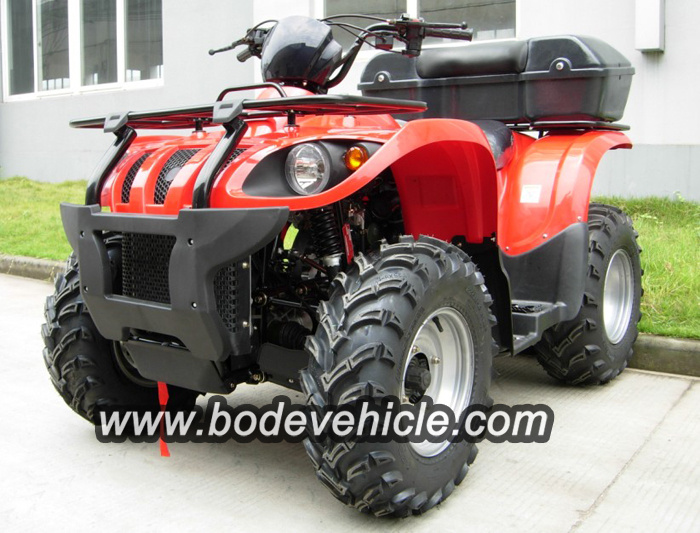

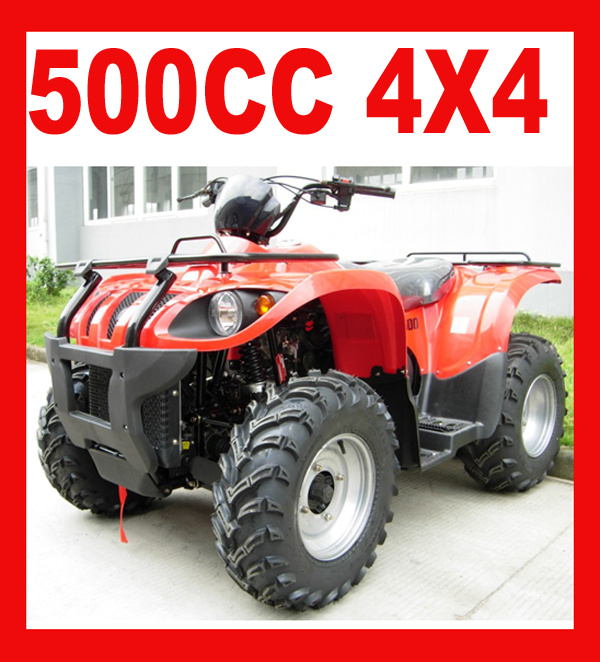

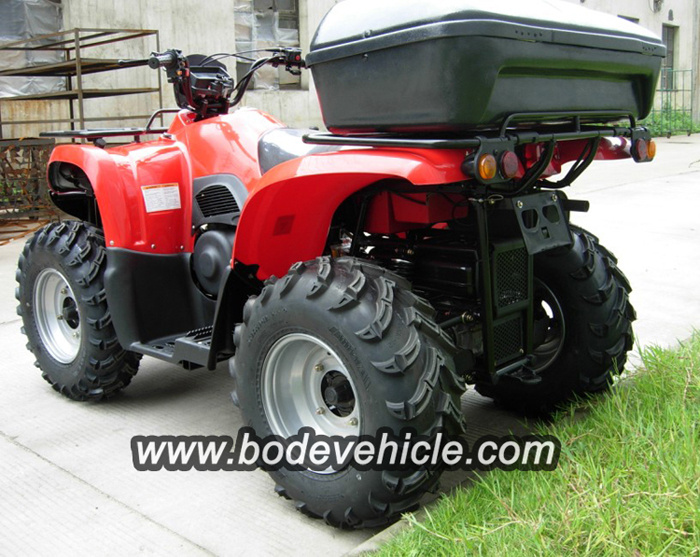

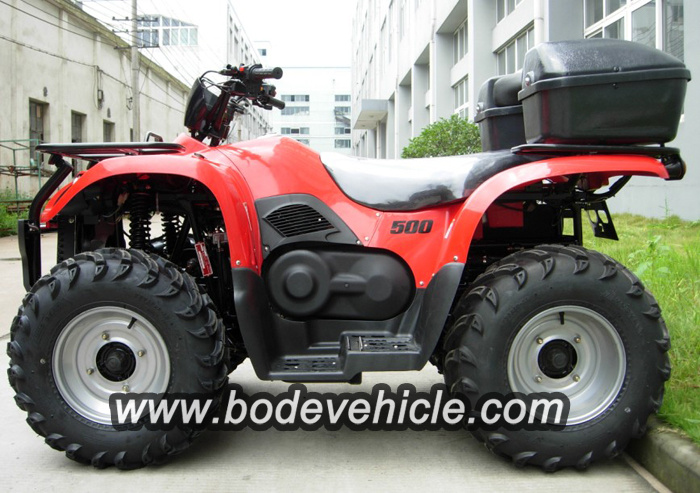

New 500cc Wholesale ATV China (MC-394)
| Price: | US $ 3400-3450/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | MC-394 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | 4 Strokes,Water- Cool,CTV Fully Auto .500cc 4X4 |
| Color: | Red/Yellow/White/Black/Grey |
| Warranty: | 6 Month |
| Ignition Type: | Cdi |
| Vehicle Dimensions: | 2000*1150*1100mm |
| Front Tire Spec: | 25 X 8 - 12 |
| Rear Tires Spec: | 25 X 10 - 12 |
| Fuel Tank Capacity: | 22L |
| Item Name: | Quad Bike |
| Battery Spec: | 12V,12ah |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Displacement: | >400CC |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | >75 km/h |
| Power: | >1000W |
| Certification: | EEC |
| Condition: | New |
| Brand: | Bode |
Product Description
NEW 500CC wholesale atv china(MC-394)1)Engine: 4 strokes, water- cool, CTV Fully Auto. 500CC 4X4
2)Cylinder: Single cylinder
3)Lubrication: Pressure splash
4)Cylinder Bore Diamiter: 92mm(3.63"
5)Piston Stroke: 75mm(2.96"
6)Displacement: 498.6cm3
7)Compression Ratio: 10.2: 1
8)Japanese Carburetor: Single Chanber
9)Transmission: CVT Fully Auto w/Belt
10)Shaft Driver
11)Gear Shiftting R, N, D, L (Reverse, Neutual, Drive, Low gear)
12)Max Power: 24kw /6800r /min
13)Max Torge: 38 N. M /5000r /min
14)L xW xH: 2020mmx1160mmx1170mm
15)Weight: 330kg
16)Brake: Front + Rear Disc Brake
17)4 wheels independent suspension
18)2WD/4WD adjustable by electric switch
19)LH hand brake stop the front wheels.
20)RH hand brake stop the rear wheels.
21)Foot brake stop the 4 wheels.
22)Carton size: 2000*1150*1100mm
23)Carton size: 2000*1150*1100mm
24) Container: 10pcs/20FT 24pcs/40HQ
Atv and go kart HS code: 8703101100
