New 300cc 4X4 Adult Quad Bike (MC-371)
| Price: | US $ 2350-2550/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | MC-371 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | 300cc Water Cooled,CVT |
| Color: | Red/Blue/White/Black/ |
| Warranty: | 6 Month |
| Ignition Type: | Cdi |
| Vehicle Dimensions: | 2016×1180×1237mm |
| Front Tire Spec: | 25×8-12 |
| Rear Tires Spec: | 25×8-12 |
| Fuel Tank Capacity: | 12L |
| Packing Size: | 2280×1290×870mm |
| Battery Spec: | 12V/14ah |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 300CC |
| Structure: | Without Door |
| Maximum Speed: | >75 km/h |
| Brake Type: | Disc Brake |
| Condition: | New |
| Brand: | Bode |
| Power: | 300cc |
Product Description
New 300cc 4x4 adult quad bike(MC-371)ENGINE TYPE 4 Stroke,Water CooledMAX.POWER(KW/rpm) 14KW/7000rpm
MAX.TORQUE(NM/rpm) 20N.M/5500rpm
MAX.SPEED 65KM/h
CYLINDER NO. Single Cylinder
BORE STROKE 72.5mm × 66.8mm
DISPLACEMENT 276cm
COMPRESSION RATIO 10.3:1
CARBURETOR CVK052
LUBRICATE Combined force-feed and splash lubrication
AIR FILTER TYPE Dry Air Filter Net
SPARK PLUG DR8EA
STARTING Electric Start
IGNITION C.D.I
STARTING PROCEDURE Start Electric Lock, Hold brake ,Press Start Switch
GEARSHIFT Manual
SHIFT SWITCH Yellow switch between 2W and 4W
TRANSMISSION Automatic CVT with H/L/N/R
FINAL DRIVE SYSTEM Shaft/4W
BRAKE FRONT Hydraulic disc brake
BRAKE REAR Hydraulic disc brake
PARKING DEVICE Mechanical brake lock on rear disc
BRAKE DISTANCE 7m/30km/h
FRONT SUSPENSION Mcpherson front suspension
REAR SUSPENSION Swing Arm
SHOCK ABSORBER(F) Double
SHOCK ABSORBER(R) Single
BATTERY 12V/14AH
ENGINE OIL 1.5L
TRANSMISSION OIL 0.8L
REAR OIL 0.3L
FUEL 90# unleaded gasoline
FUEL CAPACITY 12.5L
TURNING RADIUS 3280mm
MAX.LOAD(kgs/lbs) 156kg
FRONT TIRE 25×8-12
REAR TIRE 25×8-12
WHEEL MATERIAL Aluminium alloy
OVERALL 2016×1180×1237mm
CARTONE SIZE (L/M/H) 2280×1290×870mm
PACKAGE40HQ`(SET) 27pcs
WHEELBASE(mm) 1271mm
SEAT HEIGHT(mm) 895mm
GROUND CLEARANCE 183mm
NET WEIGHT(kgs/lbs) 275kg
Optional Accessories winch
COLOR CODE Red, Black, Orange, Blue, Green, White Maple Leaf Camo,
Red Maple Leaf Camo,Yellow Maple Leaf Camo,Green Black Camo
Atv and go kart HS code:8703101100

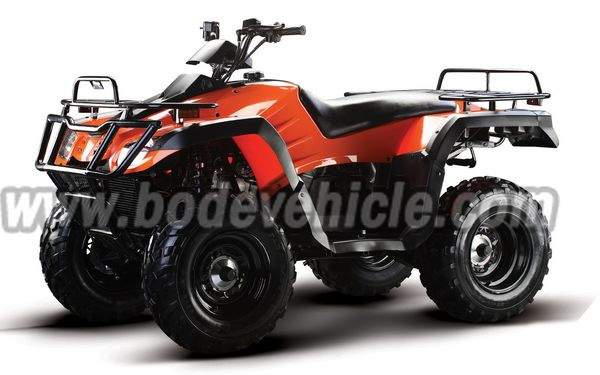

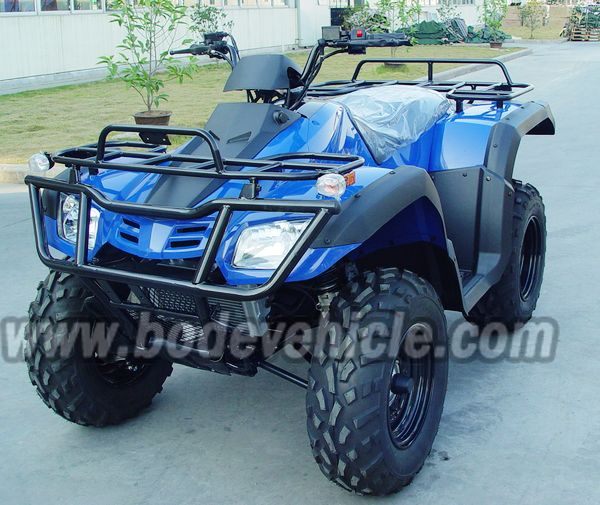

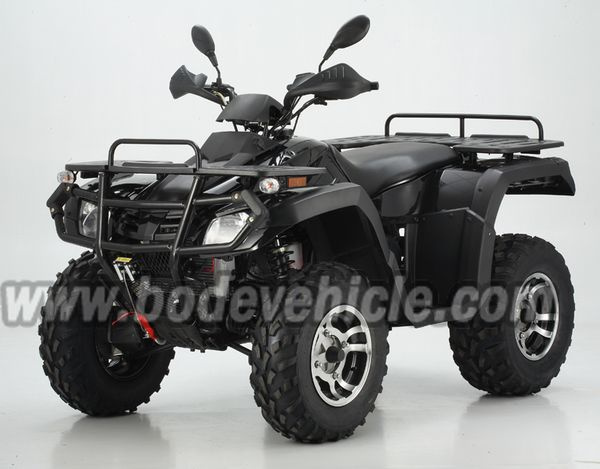

Details pictures:
JINHUA BODE INDUSTRIAL Co., Ltd. is a professional company integrated with developing, designing manufacturing and selling. Bode is specialized in manufacturing the dirt bike, ATVs and pocket Bikes, through years of the hard work, Bode now has 2000 employees. With daily output of 1500 pieces of dirt bike, ATVs and Pocket Bikes, Bode has established well sales network in the different provinces of China, and also exported its products to USA, U. K, South Korea, Japan and EU. South Africa
With theory of"People Fitst and Security Foremost", Bode has professional technicians, modern scientific management methods and advanced manuthcture technology. Bode has a complete set of the most advanced testing equipmemt in the world, continues to use interna-tional advanced manufacture technology which can make products with the high quality and high efficiency.
Since founded. Bode insist that the production quality is the root of business and the fountain of development. Bode not only control productions quality strictly and also offer importance to after-sale service, our products are insured by People's insurance of China. Bode gained lots of credit,
It was chosen as "Recommended products for state construction project" by Engineering Construction department of China in 2000 and"Famouse hardware production of China" on the seventh hardware exposition of China in 2002. Bode is worth of trusting and won many prize, for example: "the unit of dependability in 2001, 2002", "Jinhua famouse brand products in possesses 12 technical patents. As business developed, the company is going to increase production capacity to meet the increase of customer demand".
Under the business principle of"to create the market by high quality, to satisfy the customer with credibility". Bode has been keeping on strengthening its competitive capability, developing its internal management, and has gained good social reputation, Bode is sincerely seeking for cooperation and welcome to visit Zhejiang Bode and looking forward to glorious future development together with you.
With theory of"People Fitst and Security Foremost", Bode has professional technicians, modern scientific management methods and advanced manuthcture technology. Bode has a complete set of the most advanced testing equipmemt in the world, continues to use interna-tional advanced manufacture technology which can make products with the high quality and high efficiency.
Since founded. Bode insist that the production quality is the root of business and the fountain of development. Bode not only control productions quality strictly and also offer importance to after-sale service, our products are insured by People's insurance of China. Bode gained lots of credit,
It was chosen as "Recommended products for state construction project" by Engineering Construction department of China in 2000 and"Famouse hardware production of China" on the seventh hardware exposition of China in 2002. Bode is worth of trusting and won many prize, for example: "the unit of dependability in 2001, 2002", "Jinhua famouse brand products in possesses 12 technical patents. As business developed, the company is going to increase production capacity to meet the increase of customer demand".
Under the business principle of"to create the market by high quality, to satisfy the customer with credibility". Bode has been keeping on strengthening its competitive capability, developing its internal management, and has gained good social reputation, Bode is sincerely seeking for cooperation and welcome to visit Zhejiang Bode and looking forward to glorious future development together with you.
