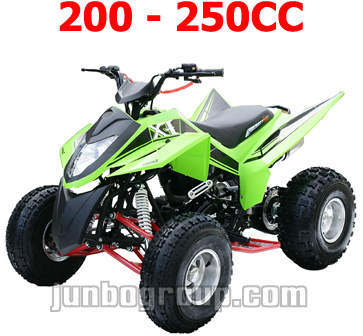

New 200CC / 250CC ATV Quad Bike Air Cooled ATV (DR776)

Specifications

Prod Model:	DR776
Engine Type:	4 Stroke
Displacement:	200CC
Transmission Type:	Automatic
Transmission System:	Chain Drive
Certification:	EEC

Product Description

Engine Type: 4-stroke, single cylinder, air cooled

For 200CC:
Displacement: 196.4cc
Max power: (kw/rpm): 9.3/8500
Max torque(Nm/rpm): 10.0/7500

For 250CC:
Displacement: 229.2cc
Max power: (kw/rpm): 11.5/6500
Max torque(Nm/rpm): 17.5/5500

Starting: Electric
Ignition: CDI
Compression Rate: 9.2: 1
Transmission: 4-speed, manual clutch with reverse inside
Final Drive: Chain
Front Brake: Hydraulic brake
Rear Brake: Hydraulic brake
Max Speed (Km/h): 65
Fuel Capacity(liter) L: 7
Battery: 12v, 9Ah
Front/rear Tire: 19x7-8'/21x10-8'
Capacity Weight (kg): 160

For 200CC:
Wheel Base (mm): 1120
Seat height (mm): 760
Mini ground Clearance (mm): 120
N. W. (kgs): 141
G. W. (kgs): 168
Product size(mm): 1650 x 900 x 1060
Outer packing:
Carton size (mm): 1435 x 900 x 865
Conveyance:
Qty/20' GP: 20 units
Qty/40' HQ: 63 units

For 250CC:
Wheel Base (mm): 1245
Seat height (mm): 800
Mini ground Clearance (mm): 150
N. W. (kgs): 160
G. W. (kgs): 190
Product size(mm): 1825 x 1140 x 1085
Outer packing:
Carton size (mm): 1620 x 1000 x 865
Conveyance:
Qty/40' HQ: 42 units
