Specifications
Prod Model: |
KP125 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wheel: |
Alloy |
Muffler: |
Alumunium |
Meter: |
Digital |
Container Loading: |
160 Sets/40hq for CKD;105 Sets/40hq for CBU |
Engine Type: |
4-Stroke |
Displacement: |
126-250CC |
Certification: |
CQC |
Type: |
Straddle |
Condition: |
New |
Fuel: |
Gas / Diesel |
Product Description
Sales points
1, Unique and fashional headlights

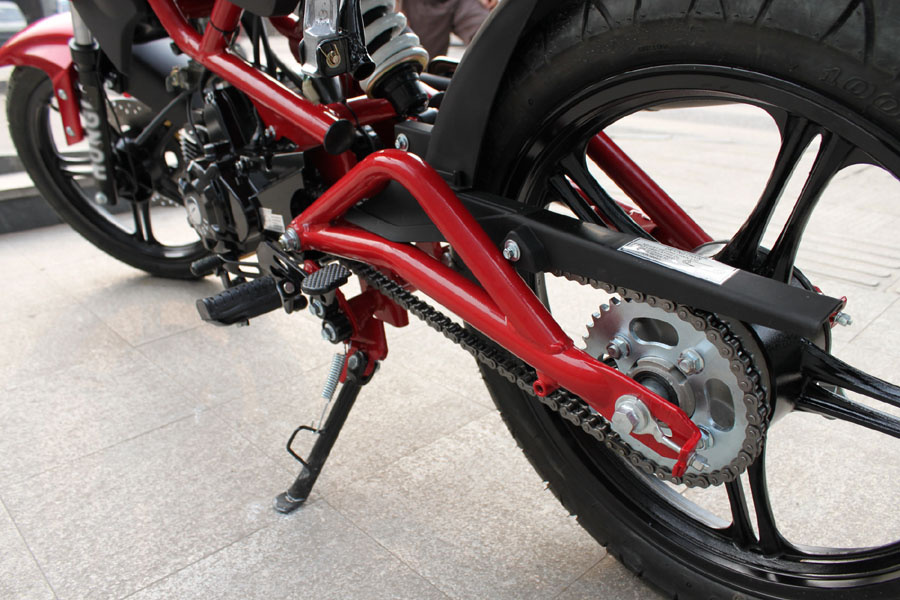

2, Rear triangle fork and triangle chassis design make perfect match.
3, LED lights
4, Outstanding suspension: rear monoshock with 28mm travel, front shocks with 110mm travel.
5, Brake: 276mm front disc brake updates safety warranty.
6, Meters: Digital meter upgrade.
7, Muffler: All Aluminium or metal with Muffler Cover
8, Engine: 125cc with 6.3KW and 8.8NM; Zongshen engine-the best in China in power output and stability.
9, Chassis: spine design is especial, contrasting with old design, 30% lower in weight but 10% stronger in intensity.
Engine |
Zongshen 125cc single Manual clutch, Air Cooloer, 4 stroke, e/k-starter, non-rotary automatic gear |
Zongshen W155cc single Manual clutch, oil-cooler, 4 stroke, e/k-starter, non-rotary automatic gear |
Sprocket |
Front 14 teeth, Rear 32 teeth |
Front 14 teeth, Rear 32 teeth |
Shock Absorber |
Yaoyong brand, Rear Mono Shock |
Yaoyong brand, Rear Mono Shock |
Brake |
Front Disk(276mm), Rear Drum(140mm) |
Front Disk(276mm), Rear Drum(140mm) |
Wheel |
Alloy |
Alloy |
Tire |
Front 80/90-17, Rear 100/80-17, WeiXing Brand |
Front 80/90-17, Rear 100/80-17, WeiXing Brand |
Muffler |
made of metal, round type with Muffler Cover
|
All Aluminium type
|
Meter |
digital type |
digital type |
Battery |
12V7A |
12V7A |
|
|
|
CKD loading quantity |
160 sets/40HQ |
160 sets/40HQ |
CBU loading quantity |
105 units/40HQ |
105 units/40HQ |
|
|
|
specification |
|
|
|
125cc |
155 |
ENGINE TYPE |
Zongshen, 4 Stroke, air cooler |
Zongshen, 4 Stroke, oil-cooler |
DISPLACMENT (cc) |
125cc |
155.5 |
CYLINDER |
SINGLE |
SINGLE |
MAX.HORSEPOWER kw(r/min) |
6.3 Kw / 7500 Rpm |
10.5 Kw / 8500 Rpm |
MAX.TORQUE N.m(r/min) |
8.8 Nm / 5500 Rpm |
11.5 Nm / 6500 Rpm |
OVERALL L*W*H |
1940 * 940 * 1050 |
1940 * 940 * 1050 |
WHEELBASE (mm) |
1290 |
1290 |
DRY WEIGHT AMOUNT(kg) |
102 |
102 |
TIRE STD.(FR/RR) |
80/90-17 / 100/80-17 |
80/90-17 / 100/80-17 |
TYPE (FR/RR) |
DISK/ DRUM |
DISK/ DRUM |
HIGHEST SPEED (km/h) |
90 |
120 |
