Specifications
Prod Model: |
AT1103 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Size: |
1380*810*920 |
Max Power: |
5.2/8500(Kw/Rpm) |
Max Torque: |
7.2/6000(Nm/Rpm) |
Ignition: |
C.D.I |
Lubrication: |
Pressure and Splash |
Compression Ratio: |
9.1:1 |
Fuel Capacity: |
2.4(L) |
Capacity Weight: |
65(Kg) |
Battery: |
12V4ah |
Wheel Base: |
800(Mm) |
Product Description

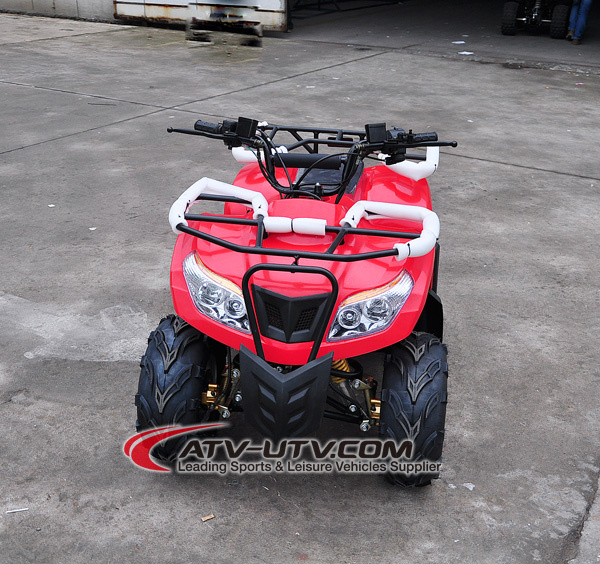

New 110cc ATV with Hydraulic disc
AT1103
Key Specifications:
1. Engine Type: 4-stroke, 1-cylinder, air-cooled
2. Product size: 1380*810*920
3. Displacement: 110cc
4. Max Power: 5.2/8500(kw/rpm)
5. Max Torque: 7.2/6000(Nm/rpm)
6. Starting: Electric
7. Ignition: C. D. I
8. Lubrication: Pressure and Splash
9. Compression Ratio: 9.1: 1
10. Transmission: Automatic
11. Final Drive: Chain drive system
12. Front/Rear Brake: Front: Hydraulic disc; Rear: Hydraulic disc
13. Max Speed: 45(Km/h)
14. Fuel Capacity: 2.4(L)
15. Capacity Weight: 65(kg)
16. Battery: 12V4Ah
17. Wheel Base: 800(mm)
18. Front/Rear Tire: 200*55-7; 200*55-7
19. Seat Height: 800
20. Mini Ground Clearance: 125(mm)
21. Color: Black, red, blue, yellow, green, camo(+$6.30)
Package: Iron cage with carton outside
22. Net Weight: 90(kgs)
23. Gross Weight: 112(kgs)
24. Product size: 1380*810*920
25. Carton Size: 1320*770*660
26.25. Container capacity: 36pcs/20GP; 108pcs/40'HQ
Minimum Order Quantity: 5pcs
