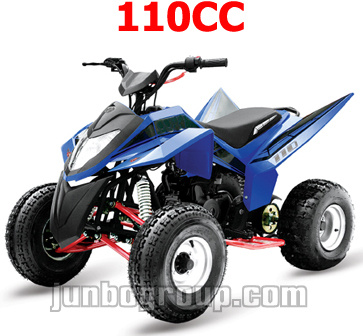

Home Zhejiang Junbo Group Co., Ltd New 110CC ATV 125CC ATV 110CC Quad 125CC with Reverse Gear (DR736)
New 110CC ATV 125CC ATV 110CC Quad 125CC with Reverse Gear (DR736)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | DR736 |
|---|---|
| Engine Type: | 4 Stroke |
| Displacement: | 110CC |
| Transmission Type: | Automatic |
| Structure: | Two Side Doors |
| Transmission System: | Chain Drive |
| Certification: | CE |
Product Description
Engine Type: 4-stroke, single cylinder, air cooledDisplacement: 107cc
Max power: (kw/rpm): 5.0/8000
Max torque(Nm/rpm): 6.7/6000
Starting: Electric
Ignition: CDI
Compression Rate: 9.7: 1
Transmission: 3-speed, automatic clutch with reverse inside
Final Drive: Chain
Front Brake: Hydraulic brake
Rear Brake: Hydraulic brake
Max Speed (Km/h): 55
Fuel Capacity(liter) L: 7
Battery: 12v, 6.5Ah
Wheel Base (mm): 1020
Front/rear Tire: 19x7-8'/18x9.5-8'
Seat height (mm): 740
Mini ground Clearance (mm): 120
Capacity Weight (kg): 135
N. W. (kgs): 120
G. W. (kgs): 147
Product size(mm): 1650 x 900 x 865
Outer packing:
Carton size (mm): 1435 x 900 x 865
Conveyance:
Qty/20' GP: 20 units
Qty/40' HQ: 63 units
