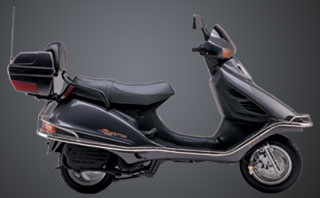

Home Taizhou Wangye Motive Power Co., Ltd. Motorcycle (WY125T-1)
Specifications
| Prod Model: | WY125T-1 |
|---|
Product Description
L*b*h: 1900mm*690mm*1150mmWheelbase: 1286mm
Minimal road clearance: 135mm
Weight: 110kg
Engine model: 152QMI
Type: Single, liquid-cooling, 4 stroke
Rated power/Rotational speed: 5.2kw/7000r/min
Starter: Electric/Pedal
Bore*stroke: 52.4mm*57.8mm
Displacement: 124.6ml
Compression ratio: 9.2:1
Fuel tank capacity: 6.5L
Vacuum film carburreter
Method lubricate:
Lgnition system: Magneyto CDI non-contact
Rated voltage: 12V
Head lamp: 12V、35w/35w
Gearbox: Centrifugal,V type belt, Stepless Change
Pneumatic wheel: front: 3.0-10 rear: 3.0-10
Braking mode: Front: hydraulic drive/hand Back: drum/foot controlling
Buffer: Front: Spring hydraulic/sleeve
Back: Spring hydraulic/sleeve
