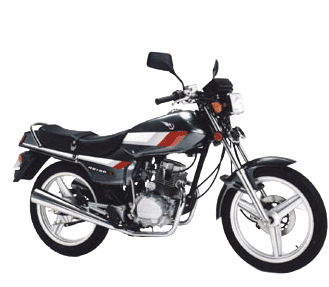

Motorcycle (TH150-4)

Specifications

Product Description

TH150-4 MOTORCYCLE Specifications:
Overall Length(mm): 2060mm
Overall Width(mm): 730mm
Overall Height(mm): 1070mm
WheelBase(mm): 1350mm
Ground Clearance(mm): 140mm
Dry Weight(kg) 130kg
Max. Load Mass(kg): 150kg
Max. Speed(km/h): 90km/h
Tire: Front: 3.00-18 Rear: 3.25-18
Driving Mode: By Chain
Brake Mode: Front: Plate Rear: Drum
Brake Operation Mode: Front: By Hand Rear: By Foot
Engine: TH157FMI
Engine Type: Single Cylinder/Double Vent-Pipe, Four Stroke
Cylinder Type: Vertical
Piston Displacement: 149CC
Compression Ratio: 9.5: 1
Max. Torque(N. M/rpm): 10.2/6000(N. M/rpm)
Lubrication: Compress & Splash Combined Type
Max. Output Power(kw/rpm): 9.2/8000(kw/rpm)
Ignition: C. D. I
Started System: Electric Starter/Kick Starter
Engine Cooling: Forced Air Cooling
Transmission: Five Speed Circularly Gearshift
Clutch: Manual, Wet, Multi-Disc
Battery: 12V7AH
Fuel Capacity: 14L
Average Consumption: 2.5L/100km
Shipping Size: (Front wheel and hand bar knocked down)
Packing Size(LxWxH)(mm): 1800 X 560 X 990 mm
Weight: Net Weight: 130kgs Gross Weight: 160kgs
Quantity Of Container:
20'FCL: 24 units
40'FCL: 52 units
40'HQ: 52 units
