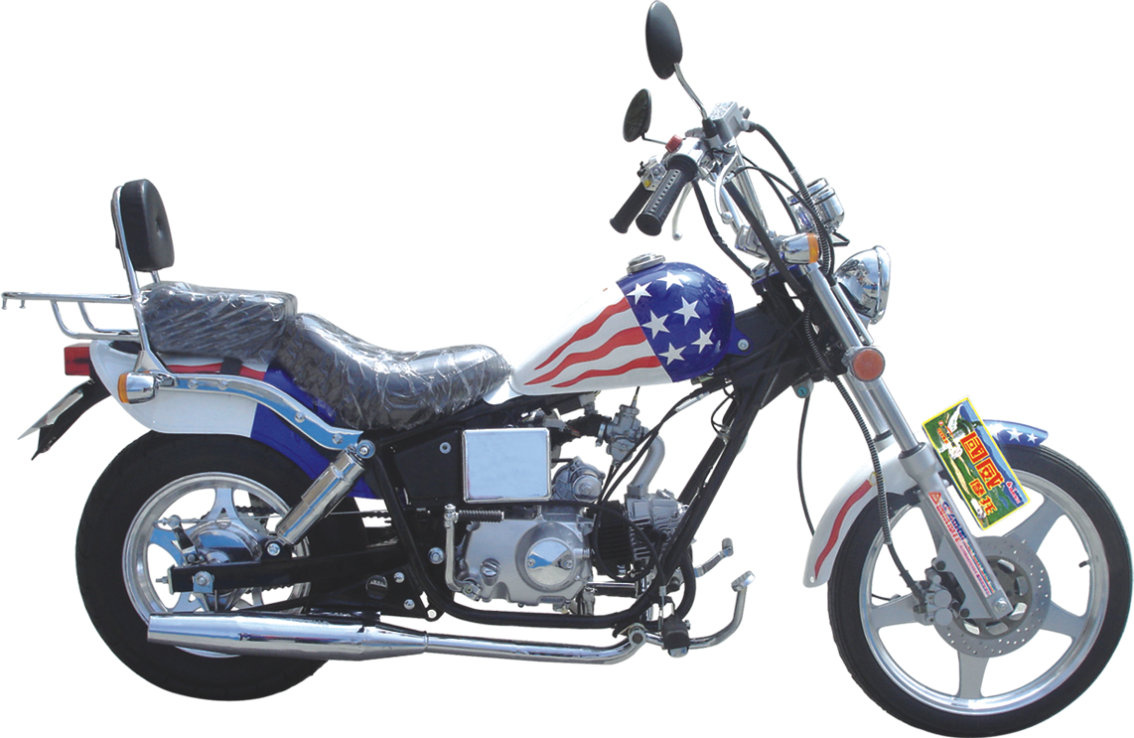

Motorcycle (GW70Q-D, GW50Q-D)

Motorcycle (GW70Q-D, GW50Q-D)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 40/Piece
Pay Type: L/C,T/T

Specifications

Prod Model: GW70Q-D, GW50Q-D(EEC)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motorcycle: 50cc EEC
Motor Bike: 70cc or 110cc
Engine Type: 4-Stroke
Displacement: ≤50CC
Certification: CQC
Type: Chopper
Condition: New
Fuel: Gas / Diesel

Product Description

We are manuactory to produce motorcycle/scooter/tricycle/ electric tricycle/ electric motorcycle/ electric scooter/ electric bikes
Specifications/Features:
ENGINE TYPE 70cc   50cc  (EEC Model)
Standard Price
Displacement 72 49
Engine 1 Cylinder, 4 Stroke 1 Cylinder, 4 Stroke
Bore & Stroke 47*41.4 39*41.4
Cooling System Air Cooled Air Cooled
Compression Ratio 8.8:1 9.0:1
Fuel feed 93#  93#
Max Power( Kw/rpm) 4.0kW/7500r/min 2kW/7500r/min
Max Torque(N.M/rpm)  5.0N.m/4500r/min 2.5N.m/5000r/min
Max Speed 60kmph 45kmph
Ground clearance 110 MM 110 MM
Fuel consumption 1.9L/100KM 1.7L/100KM
Ignition CDI CDI
Transmission CHAIN CHAIN
Fuel tank capacity 8 L 8 L
Starting System Electric+kick start Electric+kick start
Front Brakes Disc brake Disc brake
Rear Brake Drum brake Drum brake
Front suspension hydraulic shock absorber hydraulic shock absorber
Rear suspension spring shock absorber spring shock absorber
Front wheels Alum 2.50-17 Alum 2.50-17
Rear wheels Alum 4.00-12 Alum 4.00-12
Wheel Base 1475MM 1475MM
Seat Height 628 MM 628 MM
Payload 150KG 150KG
Net Weight 115KG 115KG
Gross Weight 129KG 129KG
Packing type Steel + Carton Steel + Carton
 size 1810×750×995 mm 1810×750×995 mm
 Packing size 1700×380×860 mm 1700×380×860 mm
20' container 40units 40units
40' HQ container 126 units 126 units
