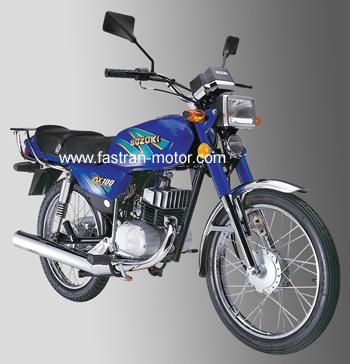

Motorcycle (FR100-7)

Specifications

Prod Model:	FR100-7(AX100)

Product Description

Model: FR100-7
Main technical specifications:
Dimension ((L*B*H mm)1865*725*1050
Wheel base (mm): 1215
Min. Ground Clearance (mm): 140
Dry Weght: 82kg
Engine Type: Single-cylinder, air-cooled, tow/four-stroke
Engine model: 1E50FMG
Bore*Stroke: 50mm*49.5mm
Displacement: 97ml
Maximum Power 6.5kw/7500r/min
Maximum Torque: 8.0N. M/6500r/min
Clutch: Wet multi-plate
Lubrication: Auto separate lubrication
Start: Kick start
Ignition: C. D. I
Max. Speed (km/h): 80km/h
Economical Fuel Consumption (l/100km): ≤2.1L/100Km
Front Type Size and Air Pressure: 2.50-18/220KPa
Rear Type Size and Air Pressure: 2.50-18/225KPa
Climbing Ability (' ): ≥18'
Exhaust Index: CO≤3.8%
HC≤3500ppm/ CO≤3.8%; HC≤800ppm
Start Performance: ≤15s
Brake Performance: ≤7m/30km/h
