Specifications
Prod Model: |
CG125, C100, Jaguar, Unicorn, Titan99, Legenda |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
Outer Diameter: |
119mm |
Middle Diameter: |
110mm |
Inner Diameter: |
91mm |
Part: |
Clutch Disc |
Classification: |
Friction Clutch |
Type: |
Motorcycle Clutch |
Certification: |
ISO/Ts16949 |
Material: |
Non-Asbestos |
Product Description

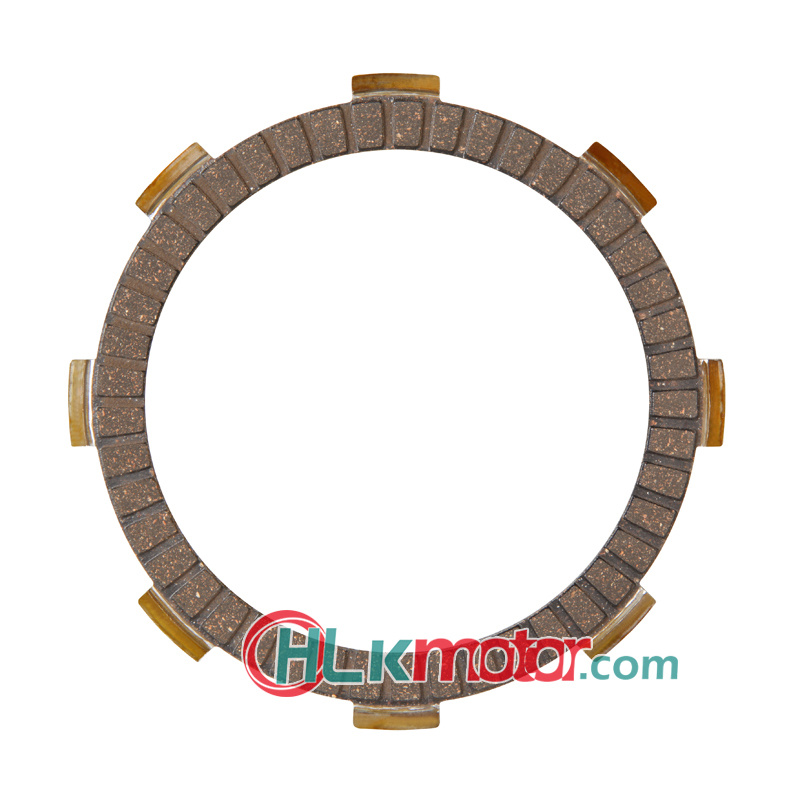

Motorcycle Clutch Plate HL-CP001Applicable for: CG125 / Jaguar / CD100 / TITAN99 / LEGENDA / Titan99 / TItan 150 / Eco100 / Unicorn, ect.
Factory code: HL-CP001
Size: 110mm / 110mm / 91mm
Material: Non-asbestos friction material, rubber, cork, alunium.
Packing: Original packing, neutral packing, or customer's packing.
Port of loading: Shanghai or Ningbo, China.

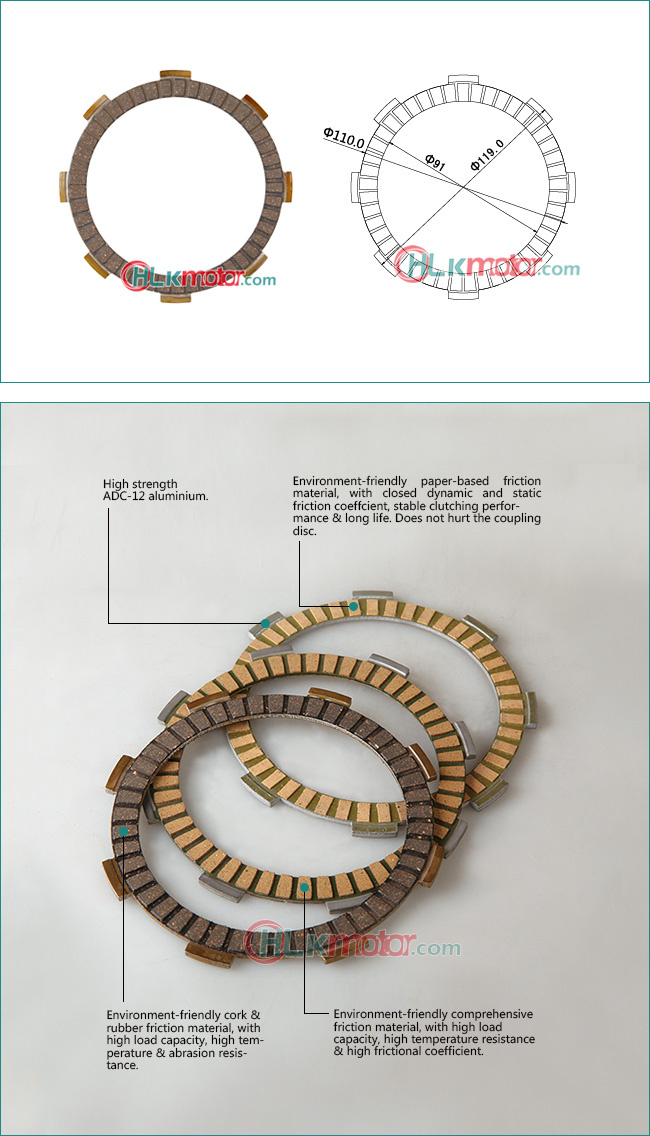

Factory Code | OEM Code | Ourter Diameter | Middle Diameter | Inner Diameter | Applicable Motorcycle |
HL-CP001 | 22201-107-000 22201-166-000 22201-KBW-900 22201-MR8-000 22201-MJ8-000 22201-GF6-000 22201-KBG-671 22200-KGH-601 22201-KPM-850 ... | 119mm | 110mm | 91mm | CG125 / Jaguar / CD100 / TITAN99 / LEGENDA / Titan99 / TItan 150 / Eco100 / Unicorn, ect. |
Features:
· Environment-friendly paper-based friction material, with closed dynamic and static friction coeffcient, stable clutching performance & long life. Does not hurt the coupling disc.
· High strength ADC-12 aluminium.

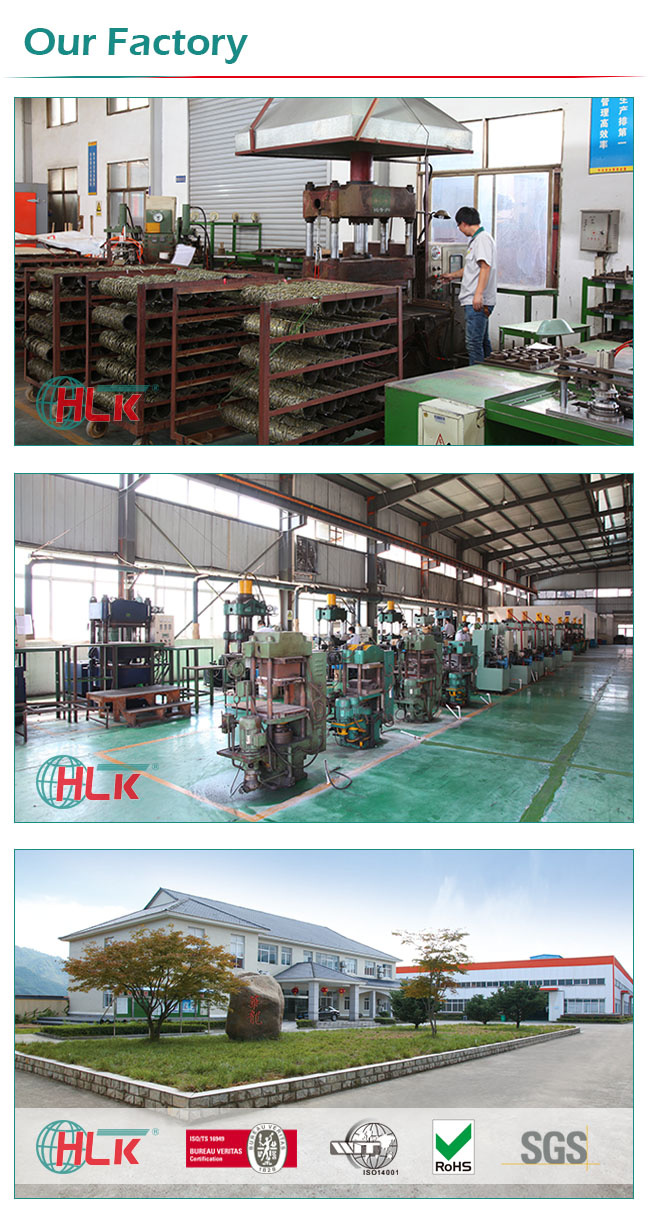

Manufacturer informationLin'an Hualong Friction Materials Co., Ltd was founded in 1990. At present, it hold more than 50 million fixed assets, over 100 sets of advanced manufacturing machines and inspecting facility. Covering an area of more than 30, 000 square meters, the company has 200 staff members, including 20 first-class engineering technicians.
· Established 1990.
· Certificate: ISO/TS16949 by Bureau Veritas, ISO14001 by WIT, SGS.
· Environment-friendly standard: non-asbestos frictionmaterial, RhOS instruction.
