Specifications
Prod Model: |
147FMD |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Al, Steel,Iron Copper |
Color: |
White/Gray/Black/Others |
Cylinder: |
Iron Cylinder |
Cylinder No.: |
1 Cylinder |
Stroke: |
4 Stroke |
Cold Style: |
Air-Cooled |
Start: |
Kick |
Ignition Method: |
Cdi |
Displacement (Ml): |
72 |
Net Weight: |
20kg |
Type: |

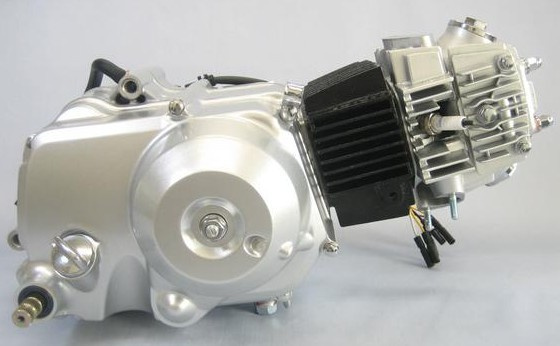

Motorcycle Engine Assembly |
Certification: |
ISO9001:2000 |
Product Description
Company Advantage:
1. Good quality TZH brand motorcycle engine rank the leading position in chongqing
2. Various model50cc/90cc/110cc/125cc/150cc/175cc/200cc/250cc
Etc. Engines and engine parts for ATV, Scooter, Moped, Dirt Bike
3. Chongqing Tianzhong has obtained the tittles: "Chinese Quality Product Enterprise" "National Customer Satisfaction Enterprise" "Top Ten Excellent Brands" "Top Ten Private Excellent Enterprise" "Key Growth Enterprise" and so on
4. The Certifications: ISO9001: 2000 Quality Management System
National Mandatory Products"3C" Certification
General Purpose Engine Licence
5. OEM are available, reasonable price, good service
6. Key Engine Parts: Cylinder assembly, piston, crankcase, cover and so on
Packaging & Shipping
Neutral packing or Brand packing; Delivery 10-15 days after 30% advanced deposit.
Paper Carton: 435mm x325 mmx310mm
Net Weight: 20KG
Gross Weight: 21KG
Our Services
Our product is your best choice; We can offer you 1 year warranty!
Beside we also offer other spare parts available as below:
1. Engine related: Like cylinder, piston kit, piston ring, clutch related parts, connecting rod, gaskets
2. Body related: All frames, plastic cover, hood, kick pedals, gear shift
3. Brake System: Brake pad, brake rod, brake shoe, brake
4. Suspension System: Front forks, rear shock absorbers, damper rubber
5. Air Intake & Exhaust system: Like air filters, mufflers, exhaust hose
6. Fuel intake system: Carburetor parts, fuel tank, fuel tap, fuel filter
7. Electrical System: Battery, lights, CDI, flasher, horn, ignition coil, rectifier, switch key, relay, magneto, meter, spark plug, harness
8. Others: All kind of cables, mirrors, oil seal, gaskets, bearings, gears, tyres, tubes, chains & sprocket: , hubs, seat cushion, handle grip
S, gears, tyres, tubes, chains & sprocket: , hubs, seat cushion, handle grip
Main Technical Specifications |
Model |
147FMD |
Type |
Single cylinder,four-stroke,air-cooled |
Displacement |
72ml |
Bore x Stroke |
47mm x 41.4mm |
Rated Power & Rotating Speed |
3.1/8000KW/(r/min) |
Max.Torque & Rotating Speed |
4.1/5500N.m/(r/min) |
ldling Speed |
1500±150r/min |
Min.Fuel Consumption |
≤ 367g/KW.h |
lgnition |
CDI |
Starter |
Electric/Kick |
Lubrication |
Pressure/Splash |
Transmission |
4speed ,Rotary |
