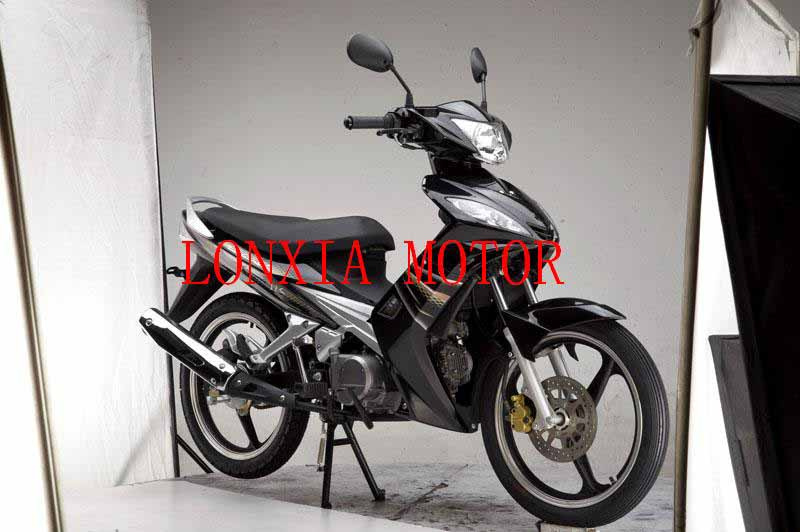

Motorcycle -1

Specifications

Certification:	EEC
Engine Type:	4-Stroke
Type:	Racing Motorcycle
Displacement:	51-125CC

Product Description

Eature: 110CC. 4 stroke, electrik&kick start, manual clutch, front&rear drum, spoke wheel
Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch method: Manual
Ignition method: C. D. I.
Start method: Electric&kick start
Cylinder: Single
Transmission: Chain
Displacement(ml): 109
Bore*stroke(mm): 52.4*49.5
Compression ratio: 8.8: 1
Rated power(kw/r/min): 5/7500± 500
Maximum torque(N. M/r/min): 7/5500± 500
Lubrication: Splash
Gear: 4
Dimensions(L*W*H)(mm): 1930*800*1120
Wheel base(mm): 1220
Seat height(mm): 850
Min. Turning radius(mm): 1900
Min. Ground clearance(mm): 200
Rider capacity: 2
Brake: Front&rear drum
Front wheel: 2.50-18
Rear wheel: 3.00-17
Fuel tank capacity(L): 6.5
Engine oil capacity(ml): 800
Climbing capacity: ≥ 15
Max. Load(kg): 90
Max. Speed(kw/h): 75
Battery: 12V5Ah
Packing size(L*W*H)(mm): 1680*370*770
Net weight(kg): 84
Gross weight(kg): 104
