Home Taizhou Jiaojiang Zhiwei Motorbike Manufacture Co., Ltd. Motor Scooter (ZW50QT-19)

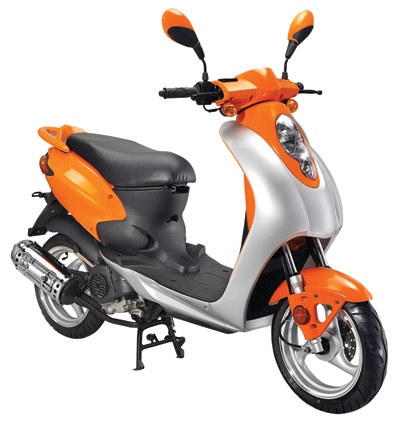

Motor Scooter (ZW50QT-19)
| Price: | US $ 400-500 |
|---|---|
| Trade Terms: | BY SEA |
| Min Order: | 105/Piece |
Specifications
| Prod Model: | ZW50QT-19 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Certification: | CE |
| Engine Type: | 4-Stroke |
| Type: | Racing Motorcycle |
| Displacement: | ≤50CC |
Product Description
L*W*H: 1615*630*1048mmWheel Base: 1234mm
Dry Mass: 95kg
Ground Clearance: 115mm
Engine Style: Single cylinder, 4 stroke, air-cooling
Engine Type: 139QMB
Bore * Stroke: 39.0× 41.5mm
Compression Ratio: 10.5: 1
Max Power: 2.5kw/6500r/min
Ignition: CDI
Starting Mode: Electric and kick starter
Front Tire: 3.5-10"
Rear Tire: 3.5-10"
Break system: F: Disk R: Drum
Battery: 12V/7Ah
Max Speed: 50km/h
Economic Fuel Consumption: 2.0L/100km
Max Load: 110 kg
Fuel Tank: 4.5L
| Model | ZW50QT-19 |
| Dimension(L*W*H,mm) | 1720x680x1080 |
| Wheel base(mm) | 1240 |
| Min clearance(mm) | 100 |
| Net weight(kg) | 80 |
| Max load(kg)/Max speed(km/h) | 70 / 60 |
| Consumption(L/100km) | 2.1 |
| Oil tank capacity (L) | 5.4 |
| Brake(Fr./Rr.) | Disk / Drum |
| Tyre size(Fr./Rr.) | 100/60-12 |
| Wheel Hub(Fr./R.r) | Aluminium |
| Wheel atmosphere(Fr./Rr.)(KPa) | 190/220 |
| Front /Rear suspension | Hydraulic spring / spring |
| Engine model / Type | 139QMB / Single cylinder, four stroke ,air cooled |
| Displacement(ml) / bore x stroke | 49.6cc / 39 x 41.5 |
| Starter/ Ignition system | kick/electrical start / CDI |
| Max power(kw/ r/min) | 2.8/8000 |
| Max torque(N.m/ r/min) | 3.4/6500 |
| Container Loading Quantity | |
| 1¡¢Disassemble front panel,handle bar,rear carrier,front wheel etc. | 1700x460x870mm |
| 20"GP container: | 26pcs |
| 40"HQ container: | 105pcs |
