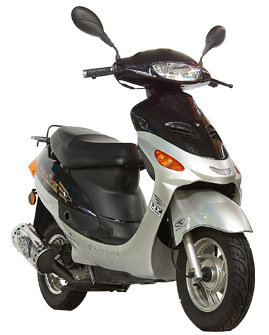

Motor Scooter (ZW50QT-16C)
| Price: | US $ 400-500 |
|---|---|
| Trade Terms: | BY SEA |
| Min Order: | 105/Piece |
Specifications
| Prod Model: | ZW50QT-16C |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: | EEC |
| Engine Type: | 4-Stroke |
| Type: | Racing Motorcycle |
| Displacement: | ≤50CC |
Product Description
Dimension (mm) 1686*652*1094Wheelbase (mm) 1200
Min clearance (mm) 100
Net weight (kg) 80
Max load (kg) 150
Max speed (km/h) 50
Brake (Fr. /Rr. ) Disk / Drum
Wheel hub (Fr. /Rr. ) Aluminium
Tyre size (Fr. /Rr. ) 3.50-10/3.50-10
Tyre size (Fr. /Rr. ) 100/60-12/100/60-12
Wheel atmosphere(Fr. /Rr. ) (kPa) 190/220
Consumption (L/100km) 2.1
Engine model ZW139QMB
Engine type 1-Cylinder, 4-Stroke, air-cooled
Max power (kw/(r/min)) 2.25/8000
Max torque (N@m/(r/min)) 3.0/6500
Ignition C. D. I
| Model | ZW50QT-16C |
| Dimension(L*W*H,mm) | 1745x650x1130 |
| Wheel base(mm) | 1270 |
| Min clearance(mm) | 110 |
| Net weight(kg) | 82 |
| Max load(kg)/Max speed(km/h) | 70 / 60 |
| Consumption(L/100km) | 2.1 |
| Oil tank capacity (L) | 4.5 |
| Brake(Fr./Rr.) | Drum/Drum |
| Tyre size(Fr./Rr.) | 3.50-10 |
| Wheel Hub(Fr./R.r) | Aluminium |
| Wheel atmosphere(Fr./Rr.)(KPa) | 190/220 |
| Front /Rear suspension | Hydraulic spring / spring |
| Engine model / Type | 139QMB / Single cylinder, four stroke ,air cooled |
| Displacement(ml) / bore x stroke | 49.6cc / 39 x 41.5 |
| Starter/ Ignition system | kick/electrical start / CDI |
| Max power(kw/ r/min) | 2.8/8000 |
| Max torque(N.m/ r/min) | 3.4/6500 |
| Container Loading Quantity | |
| 1¡¢Disassemble front panel,handle bar,rear carrier,front wheel etc. | 1700x460x870mm |
| 20"GP container: | 26pcs |
| 40"HQ container: | 105pcs |
