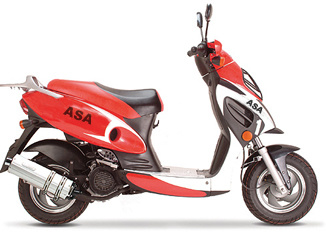

Motor Scooter(150T-8)

Specifications

Prod Model:	Motor Scooter(150T-8)

Product Description

Transmission: Belt transmission
Engine Type: Single cylinder, air-cooled 4-stroke
Starting Mode: Electric/Kick
Ignition Mode: CDI
Bore x Stroke: 52. 4 x 57. 8
Displacement: 125ml/150ml
Fuel Tank: 4. 2L
Compression Ratio: 9. 2: 1
Max. Speed: 70km/h(43. 50mile/h)/79km/h(490. 9mile/h)
Max. power output: 5. 6/7500, 7. 0/7500Kw/r/min
Max Torque and Rotate Speed: 7. 5/4000, 8. 5/4000Nm/r/min
Wheelbase: 1300mm(51. 18inch)
Min. Ground Clearance: 35-55mm(1. 30-2. 17inch)
Front/Rear Brake system: Disc Brake(F/R)
Front/Rear Tyre Size: 4: 00-12/4. 00-12
Max. Payload: 140kg(308. 65lbs)
N. W/G. W: 91. 5/105kg
Overall Dimensions(L * W * H): 1910 * 730 * 1095mm(75. 20 * 28. 74 * 43. 11inch)
Carton Size: 1820 * 570 * 1200mm(71. 65 * 22. 44 * 47. 24inch)
Loading QTY(20FT/40FT/40HQ): 26/56/84pcs
