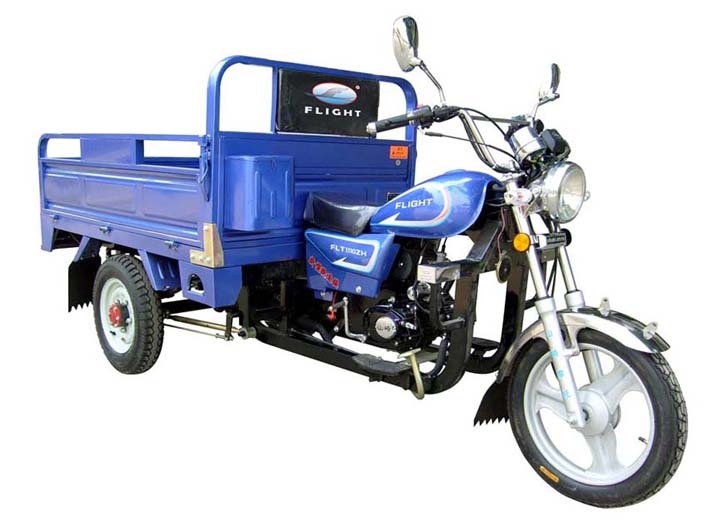

Motor (FLT110ZH)

Specifications

Prod Model:	FLT110ZH

Product Description

Technical Information:
Type: FLT110ZH
SPECIFICATIONS OF FRAME
Measurement (L X W X H): 3170*1150*1280
Drive mode: Shaft-drive
Starting: Electric/kick
Front Tire: 3.25-16
Rear Tire: 4.50-12
Front Brake: Drum
Rear Brake: Drum
Break operate mode: Front hand break
Rear foot break
Axle distance (mm): 2050

Ground clearance 175mm
Wheel Base (mm): 960
Max. Speed: 60km/h
Max loading: 200kgs
Net Weight: 260kg
Cargo box: 1100*1600*840
SPECIFICATIONS OF ENGIN
Engine model: 1P52FMH
Type Of Engine: 1cylinder, wind cool, 4stroke
Displacement 106.7ml
Compression Ratio 8.8: 1
Fuel Tank Volume: 10L
Rated power: 5.0kw/7500r/min
Max torque: 6.5N. M/6500r/min
Lubricate Mode Pressure & Splash
