Moped/Motorcycle 48Q 50CC 70CC 100CC 110CC

Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Type:	4-Stroke
Displacement:	51-125CC
Certification:	CCC
Type:	Racing Motorcycle
Condition:	New
Fuel:	Gas / Diesel

Product Description

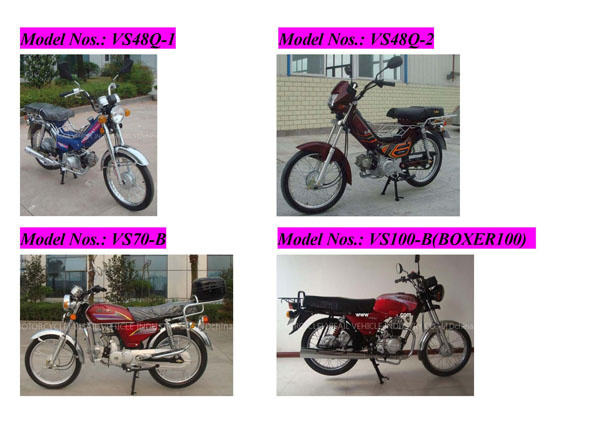

Model Nos. VS48Q-1
Dimension(mm) (Length*Width*Height) 1660× 700× 1010
Engine Type Single-cylinder, air-cooled, 4-stroke
Displacement(ml) 48
Power(kw/r/min) 2.2/8500r/min
Maximum Torque(N. M. /r/min) 3.0/7500r/min
Starting Electric/Kick
Max. Speed (km/h) ≥ 50
Wheel base (mm) 1060
Brake Type(Front/Rear) Drum/Drum
Tyre size(Front / Rear) F: 2.25-17 R: 2.50-17
Ignition mode CDI
Net weight (kgs) 70
Max Loading (kgs) 150
20' GP 64
40' GP 192
40' HQ 192
Available Engine 70CC; 90CC; 110CC

Model Nos. VS48Q-2
Dimension(mm) (Length*Width*Height) 1660× 700× 1010
Engine Type Single-cylinder, air-cooled, 4-stroke
Displacement(ml) 48
Power(kw/r/min) 2.2/8500r/min
Maximum Torque(N. M. /r/min) 3.0/7500r/min
Starting Electric/Kick
Max. Speed (km/h) ≥ 50
Wheel base (mm) 1060
Brake Type(Front/Rear) Drum/Drum
Tyre size(Front / Rear) F: 2.25-17 R: 2.50-17
Ignition mode CDI
Net weight (kgs) 70
Max Loading (kgs) 150
20' GP 64
40' GP 192
40' HQ 192
Available Engine 70CC; 90CC; 110CC

Model Nos. VS48Q-1
Dimension(mm) (Length*Width*Height) 1660× 700× 1010
Engine Type Single-cylinder, air-cooled, 4-stroke
Displacement(ml) 48
Power(kw/r/min) 2.2/8500r/min
Maximum Torque(N. M. /r/min) 3.0/7500r/min
Starting Electric/Kick
Max. Speed (km/h) ≥ 50
Wheel base (mm) 1060
Brake Type(Front/Rear) Drum/Drum
Tyre size(Front / Rear) F: 2.25-17 R: 2.50-17
Ignition mode CDI
Net weight (kgs) 70
Max Loading (kgs) 150
20' GP 64
40' GP 192
40' HQ 192
Available Engine 70CC; 90CC; 110CC

Model Nos. VS70-B
Dimension (mm) (Length*Width*Height) 1930*800*1120
Engine Type Single-cylinder, air-cooled, 4-stroke
Displacement(ml) 72
Power(kw/r/min) 6.5Kw/8000r/min
Maximum Torque(N. M. /r/min) 8.5N. M/7500r/min
Starting Electric/Kick
Max. Speed (km/h) ≥ 70
Brake Type(Front/Rear) Drum/Drum
Tyre size(Front / Rear) F: 2.50-17; R: 2.75-17
Ignition mode CDI
Wheel base (mm) 1220
Net weight (kgs) 85
Max Loading (kgs) 150
20' GP 63
40' GP 144
40' HQ 144
Available Engine 50CC; 90CC; 100CC; 110CC

Model Nos. VS100-B (BOXER100)
Dimension (mm) (Length*Width*Height) 2015× 785× 1030
Engine Type Single-cylinder, air-cooled, 4-stroke
Displacement(ml) 97
Power(kw/r/min) 4.2/7500r/min
Maximum Torque(N. M. /r/min) 6.2/6000r/min
Starting Kick
Max. Speed (km/h) ≥ 80
Brake Type(Front/Rear) Drum/Drum
Ignition mode CDI
Wheel base (mm) 1215
Net weight (kgs) 90
Max Loading (kgs) 150
40' HQ 100units CBU; 170sets CKD
