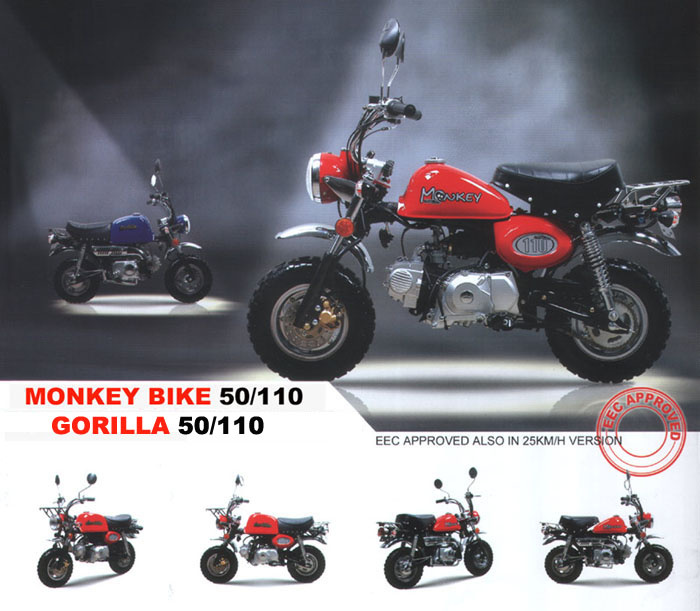

Monkey Bike

Specifications

Prod Model:	Monkey Bike

Product Description

Honda monkey bike:
Type of engine: 49cc/107/124. 8cc, 4-troke, ohc, 1 cylinder
Bore and stroke(mm): 39*41.4/52.4*49.5/52.4*57.9
Compression ratio: 8.8: 1/9.1:1/9.0:1
Cooling: Air
Ignition: Cdi
Transmission: 4 speed, manual clutch
Final drive: Chain
Starting system: Electric&kick
Suspension/front: Spring&oil
Suspension/rear: Spring&oil or double shock
Brake/front: Discφ155mm/6"
Brake/rear: Drum
Tire/front: 3.5-8
Tire/rear: 3.5-8
L*w*h: 1420*570*900mm/60"*22"*35"
Seat height: 650mm/25.6"
Wheelbase: 925mm/36.4"
Fuel capacity: 8.5l/2.3 gallons
Dry weight: 70kgs/154.3lbs
Optional: Semi-automatic
Max speed: 42km/h, 57km/h, 90km/h
