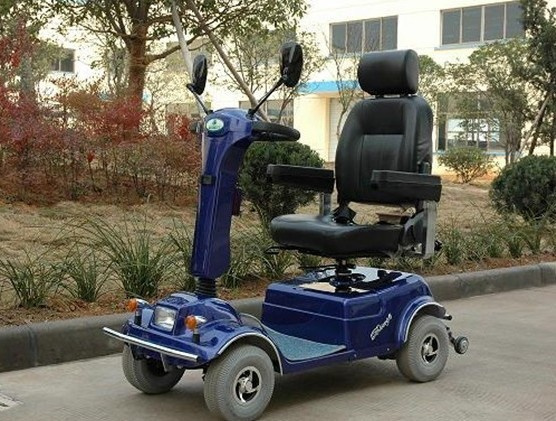

Moblity Scooter

Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Weight capacity: 150kg/330.69lbs
Rear wheel size: 10"/254mm
Front wheel size: 10"/254mm
Anti-tip wheel size: 75mm x 25mm/3 x 1"
Battery: 12V/38AH x 2
Charger: AC100-240V50/60Hz 2A
OUTPUT: 24V-4A
Controller: CURTIS / PG
Motor: 24V/300W (24V/420W/24V/800W)
Gross weight: 105kg/231.48lbs
Net weight(with batteries): 96kg/211.64lbs
Net weight(without batteries): 70kg/154.32 lbs
Unit Battery Weight: 13kg/28.66 lbs/PC
Overall dimension: 1410x625x1220mm/
55.51x24.61x48.03"
Separated into 2 parts packing
Frame body dimension: 1360x680x670mm/
53.74x26.57x41.73"
Seat Carton dimension: 635x485x485mm/
25.00x19.09x19.09"
Seat dimension: 450x425x520mm/
17.71x16.73x20.47"
Battery dimension: 194x163x177mm/
7.64x6.42x6.97"
Range: Up to 36km/ 22.37 miles per battery charge
Incline capability: 12 degrees
Turning radius(min): 1300mm /51.18"
Recharge time: 6-8hrs
Forward speed: 3.73-5.39mph/
6-9km/h(adjustable)
Backward speed: 1.49-2.98mph/
2.4-4.8km/h(adjustable)

Conveyance:
Quantity of 20' FCL: 42PCS
Quantity of 40' FCL: 84PCS
Quantity of 40'HQ: 84PCS

Features:
Large carry basket.
Easy operation, fashionable design.
Comfortable Deluxe Captain's style seat.
330lbs user weight capacity. Sturdy and stylish steel tubing.
Dual-direction rotation seat. Quick release tiller angle adjustment.
Height & width adjustable flip-up armrests.
Adjustable headrest height. Comes standard with anti tippers.
Offers good performance on indoor and smooth outdoor surfaces. Rear-wheel drive and compact
Size provide optimum maneuverability and access
Battery dimension: 194x163x177mm/
7.64x6.42x6.97"
