Specifications
Prod Model: |
SW1250 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Using Site: |
Shoulder&Neck |
Power Supply: |
Electric-Powered |
Type: |
Mobitity Scooter |
Product Description

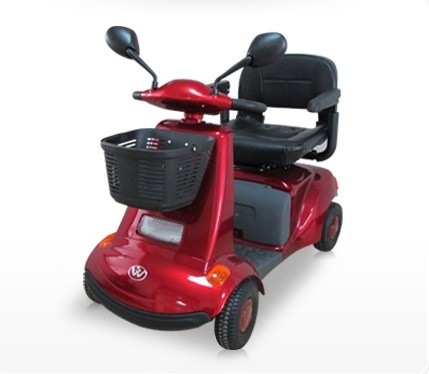

Item name: Mobility Scooter
Product All parts Specifiction:
Overall Length: 1242mm, Overall Height: 1088mm, Overall Width: 610mm
Total weight including batteries: 100kg, Total weight excluding batteries: 80kg
Weight of the frame with seat: 60kg, Weight of the frame no seat: 40kg
Max. User's weight: 150kg, Max. Load in the front basket: 10kg, Max. Loading persons: 2(include 1 child)
Max. Speed forward: 8Km/h, Min. Speed forward: 4.5Km/h, Reverse speed: 4.5Km/h
Turning radius: 90cm, Ground clearance: 8cm, Max. Cross obstacle height: 3cm
Max. Driving slope: 12 degree, Max. Driving range: 30-40km
Drive system: Rear wheel with gear box, Motor: 24V/400W, Motor controller: 24V/70A
Brake system: Eletro-magnetic parking brade Tires, PU tire size: 250x87 10x3.5
Tire size(inflatable): 250x87 10x3.5, Tube size: 10, Tire pressure: 2, 3bar
Batteries: Lead-acid 12V/35Ah, Battery charger: 120-230V/24V/5A,
Max. Charger current: 5A, , Charging time to 80% charge: 6H, Charging time to full charge: 8H
Seat width: 500mm, Backrest height: 350mm, Seat depth: 30mm, Armrest height from seat: 160mm, Seat height from scooter platform: 400mm
Seat belt for additional stability
External charger adapter for charging batteries not mounted to the scooter
