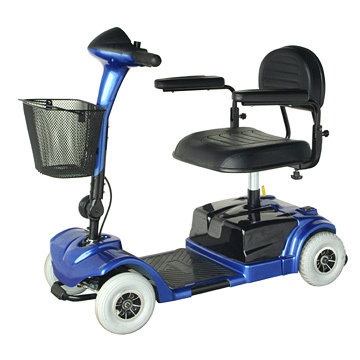

Mobility Scooter (S102F)

Specifications

Prod Model:	S102F

Product Description

Detailed Product Description
Specifications:
1) Overall dimensions: 1,050 x 483 x 900mm
2) Weight without battery pack: 70lbs (32kg)
3) Turning radius: 0.838m
4) Forward max speed: 6.4km/h
5) Backward max speed: 3.2km/h
6) Max climbing grade: 8 degree
7) Range: up to 10 miles(16km) with 12Ah batteries
8) Ground clearance: 35mm
9) Carrying capacity: 115kg (250lbs)
10) Standard seat: foldable
11) Seat dimensions (W x H x D): 420 x 343 x 406mm
12) Seat material: black vinyl
13 ) Drive system: rear-wheel drive, sealed mini transaxle, 24V DC motor
14) Braking system: electromagnetism brake
15) Tires: tire size 4 x 8 inch
16) Wheel hub: aluminum alloy
17) Battery type: 2 x 12V, deep-cycle, AGM / gel-cell
18) Battery weight: 9.4lbs (4.3kg) (each)
19) Battery rated capacity: 12V 12Ah
20) Battery charger: 2 amp off-board battery charger

Conveyance:
Qty/20' FCL: 90pcs
Qty/40' FCL: 200pcs
Qty/40' HQ: 240pcs
