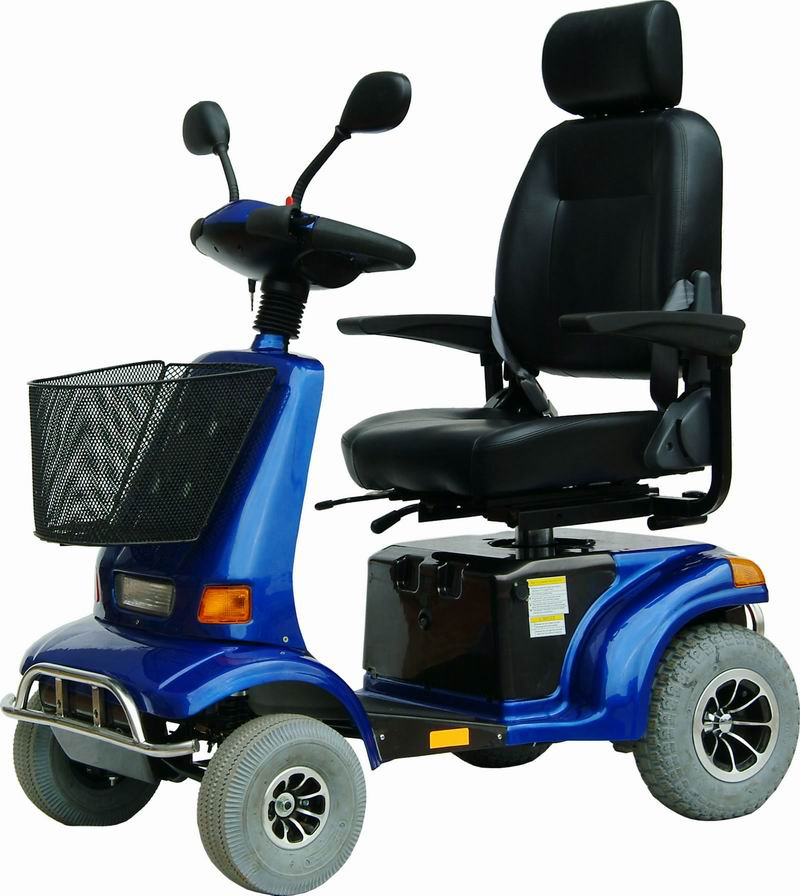

Mobility Scooter (JH01-1A)
| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1 /Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | JH01-1A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: | CE |
| Voltage: | 24V |
Product Description
This model of mobility scooter strictly accords with EN12184 standard, features the novel design and complete function. It can run on the grassplot and flat ground freely and is fit for the aged and handicapped for indoors and outdoors.1 With JIAHE unique oval waterproof touched control panel. Head light, turning lights, horn and hazard lights can work once pressing the button.
2 With sway accelerator lever, operated easily.
3 Still equipped with JIAHE solid, compact and reasonable frame. The folding steering-column, dismountable windshield and the utmost possible space for the footplate all make driving more comfortable.
4 Without getting off you can operate the magnetic brake handle directly, and the panel also has a free-wheel button, so compact and convenient.
5 With draw hook front and rear, transported conveniently.
6 Adopting Taiwan high quality luxury seat and JIAHE latest seat fixation structure. Seat
Can be rotated 90 degree toward left or right side; Backrest can be thoroughly folded
Forward and sloped 110 degree backward, operated easily and stably.
7 Equipped with Curtis controller, high quality 500W motor and USA CCB battery. PCB and charger are of Curtis technique.
8 F ront wheel: 11 inches; Rear wheel: 13 inches. Optional parts: Awning, golf shelf, cup holder, oxygen tank holder, crutch rack, rear basket, bumper, etc.
9 Packing info: 20ft container: 32units; 40ft container: 68units; 40ft HQ container: 74units
Specification:
Dimensions: 1270 X 690 X 1300mm
Ground clearance: 145mm
N. W.: 111kg (including 2 batteries 26kg)
Range per charge: 40-48km
Max. Speed Forward: 13km/h
Max. Speed Backward: 6km/h
Climbing capacity: 15 degrees
Max. Load capacity: 205kg
Turning radius: 1.37m
Front Tires: 4.10-3.50-4
Rear Tires: 4.10-3.50-6
Motor: 800W
Controller: 120A PG controller
Battery: 12V44AH X 2
Charge time: 6-8h
Container Loading
20'Container = 24 units,
40'Container = 48 units,
40'HQ Container = 48 units
