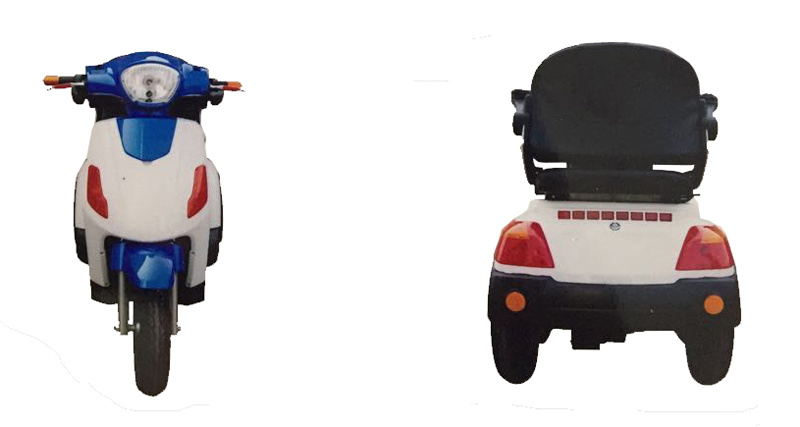

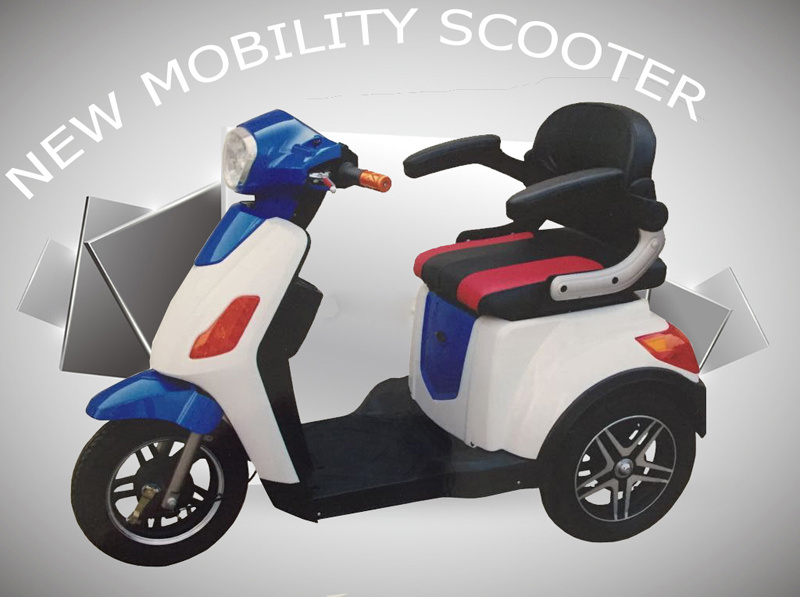

Mobility Scooter for Disabled and Old People (MSF-4)

Mobility Scooter for Disabled and Old People (MSF-4)
Price: US $ 510/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: T/T

Specifications

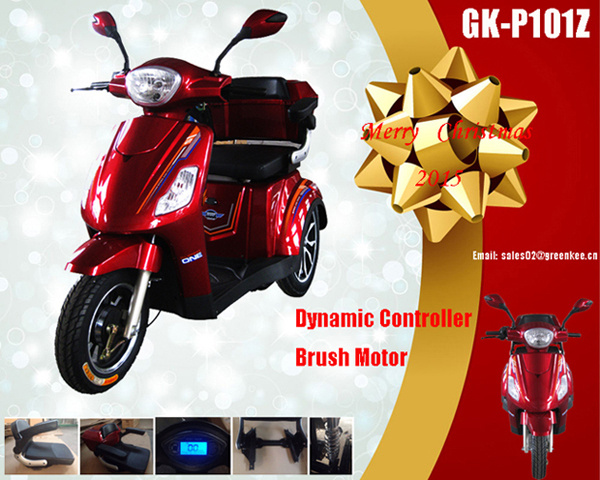

Prod Model: GK-P101Z
Markets: North America,South America,Eastern Europe
Motor 1: 400W Brush Motor
Motor 2: 500W Brushless Motor
Battery 1: 24V 28ah for 400W
Battery 2: 48V 20ah for 500W
Controller 1: 24V Dynamic Controller for 400W
Controller 2: 48V Normal Controller for 500W
Rear Basket: Yes or Big Rear Box as Photo
Moving Seat Forwardor Backward: Yes, Had Rack to Move Seat
Adustable Seat Handle: Yes
Certificate: CE
Climbing Capability: 20??
Load Capacity: 100-200kg
Accessories: Basket
Certification: CE
Folded: Unfolded
Voltage: 24V

Product Description


CE  BRUSH DIFFERENTIAL GEAR MOTOR EU STANDARD



400W Three Wheel Electric Mobility Scooter (DL24800-3)
Specification for this Mobility Scooter


 Version -1Version-2
Motor:400W Brush Differential Gear Motor500W Brushless  Transaxle  DC Motor
Battery:24V 28AH LEAD-ACID TYPE BATTERY48V 20AH LEAD-ACID TYPE BATTERY
Controller:24V Dynamic Brush Controller48V Demostic Brushless Controller
Charger:110V-220V110V-220V

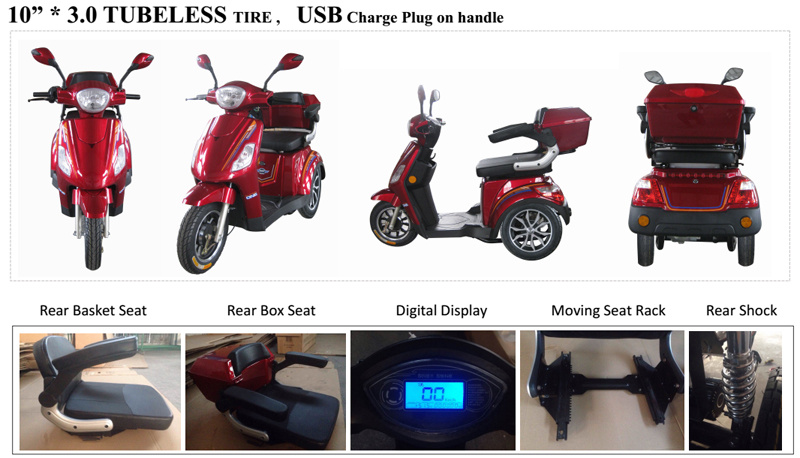

Tire:10" * 3.0 Vacuum Tire10" * 3.0 Vacuum Tire
Speed:15KM/H   MAX25KM/H  MAX
Rear Box:Rear Box Or Rear Basket As your ChoiceRear Box Or Rear Basket As your Choice
Fork:Front Hydralic Fork / Rear ShockerFront Hydralic Fork / Rear Shocker
Seat:Moving Freely forwarder or backwardMoving Freely forwarder or backward



Version 1  Popular In North America Market


The mobility scooter is a 3 wheel high-power mobility scooter using a transaxle brushless electric motor.
At full power, the mobility scooter can reach speed up to 18 mph which makes it easily the fastest mobility scooter
on the market! Up to 45 mile range per single charge! Also included a reverse switch, armrest and large storage basket.
The mobility scooter comes equipped with a anti-theft alarm and two rear shock absorbers on the frame.
The mobility scooter is a great scooter for both fun and transportation.

Features

Product Details

Specifications

Weights & Dimensions



Version 2  Popular In EU Market

Transaxle Brush DC (2G / 4G) electric motor is the favor choice and the mobility scooter also comes equipped
with
 24V Dynamic Controller from New Zealand.
Safety performance is the advantage as above Configuration.
Good climbing performance firstly.
This controller had electronic brake function. For old people, when faced with an emergency situation,
once turn to release the throttle and the mobility scooter can be stopped in time; when climbing,
turn to release
 the throttle and this automatically brake can prevent mobility scooter backwards.
Also included a reverse switch, armrest and large storage basket. The mobility scooter comes
equipped with a anti-theft alarm and two rear shock absorbers on the frame.


Features

  • Our Manufacturer provides 1 year limited warranty
  • Top speed for this mobility scooter is only 9 MPH
  • Capacity(weight): 300 lbs
  • Battery cannot be removed for charging
  • Can be easily folded or disassembled
  • Can be used in rain/snow
Product Details
  • Basket or Box Included: Yes
  • Top Speed: 9 Miles Per Hour (MPH)
  • Travel Range: 45mi
  • Number of Wheels: 3
  • Head Rest Included: No
  • Reverse Feature: Yes
  • Product Type: Outdoor
  • Arm Rests Included: Yes

Specifications

Weights & Dimensions
  • Overall: 41" H x 29" W x 61" L
  • Front Tire Diameter: 41"
  • Overall Product Weight: 200lbs



LCL Shipping


Free Shipping LCL
Ships to:     EU country.
Ships via:   By Sea

Delivery Estimates: 25-40days as your different port in EU.

Other Port Not EU.
Tell us your shipping address to calculate shipping cost.
