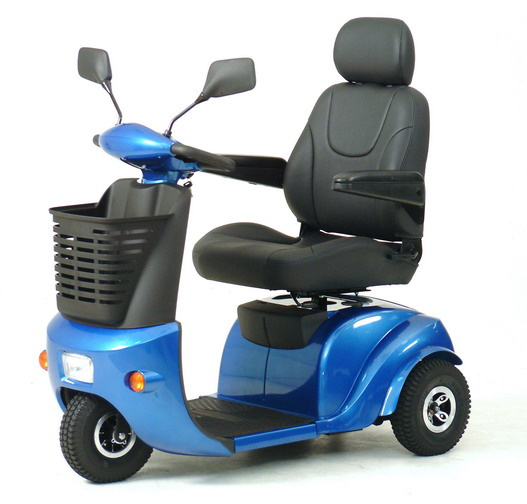

Mobility Scooter DKS320

Specifications

Prod Model:	DKS320

Product Description

Model name: DKS320
Overall height (without seat): 914.4 mm (36")
Overall length: 1168.4 mm (46")
Overall width: 624.8 mm (24.6")
Motor output: DC 24V 500W
Battery: 12V× 50AH× 2PCS
Charger: 24V 3AMP (Automatic Type) on-board
Front wheel: 85mm× 260mm pneumatic tire × 2 PCS (3.3"× 10.2")
Rear wheel: 85mm× 260mm pneumatic tire × 2 PCS (3.3"× 10.2")
Break system: Intelligent regenerative eletromagnetic brake
Net weight (with battery): 83 kg (183.0 lbs)
Net weight (without battery): 50.6 kg ( 112.0 lbs)
Maximum loading: 130 kg (286.6 lbs)
Slope grade ability: 13 degree
Traveling range: 50 KM (31 miles)
Maximum speed: 10 km/h
Controller: Dynamic
Turning Radius: 1150 mm (45")
Maximum curb height: 70 mm (2.8")
