Specifications
Prod Model: |
CAS-003 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Accessories: |
Dust Cover |
Load Capacity: |
>200kg |
Climbing Capability: |
12?? |
Product Description
Battery: 12V 38AH (two)
Motor: 450W/600W
Charger: 110-230VAC(optional) 24VDC-4A
Charge time: 6-8h
Running distance per charge: 50km
Max forward speed: 6~12km/h (optional)
Max backward speed: 2.4-4.8km/h(optional)
Max Load: 140kg
Ground Clearance: 155mm
The actul max gradient: 12degree
Turning Radius: 150cm
Tyre: 10"(pneumatic tyre or unpenumatic tyre)
N. G: 140kg(contain 2 battery: 28kg)
Dimensions(mm): 1420mm × 650mm × 1200mm
Overall carton size: 1450mm × 660mm × 600mm
Carton size for seat: 490mm × 440mm × 270mm
Features:

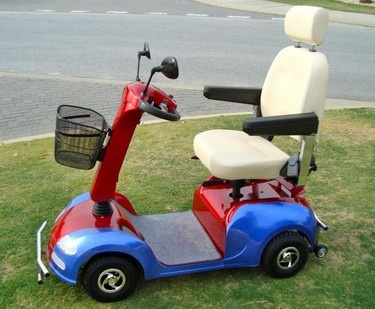

1. 4-wheel Applicable CE approved Electric Mobility Scooter;
2. Controller: CURTIS Controller, which is one of the best in the world;
3. Motor: Rear Axle Motor;
4. Battery: Sealed lead-acid maintenance-free battery;
5. It could judge the defect from the sound when you turn on the key;
6. Fit for the aged and handicapped for indoors and outdoors;
7. With sway accelerator lever, operated easily.
8. With battery energy indicator, oval waterproof touched control panel which Highlight easy operation.
