Specifications
Prod Model: |
HL-A420 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
CE |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
50CC |
Structure: |
Two Side Doors |
Product Description

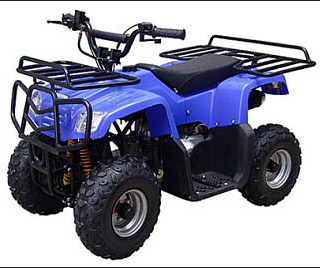

ATV / QUAD Mini hummer (HL-A420)
Key Specifications/Special Features:
1) Engine: Single cylinder, 4-stroke, air-cooled
2) Displacement: 50CC-110CC; Electric Start
3) Maximum power: 2.3kW/7, 000r/min
4) Maximum speed: 40km/h
5) Ground clearance: 80
6) Transmission system: Chain
7) Braking method: Rear disc
8) Climbing ability: 17
9) Tyre size: Front: 145/70-6; Rear: 145/70-6
10) Cylinder bore stroke: 39.0 x 41.4mm
12) Seat height: 560mm
13) Min. Turing radius: 2100mm
14) Max. Loading: 75kgs
19) Wheelbase: 750mm
20) Weight: 42kg
21) Product dimensions: 1230 x 710 x 830mm
22) Carton dimensions: 1160 x 740 x 660mm
23) Container: 42pcs/20ft; 90pcs/40ft; 120pcs/40hq
