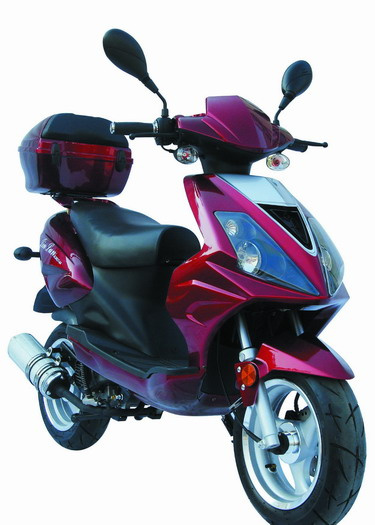

Latest Eagle Gas Scooter Petrol Scooter 50cc (HD50QT-9)

Specifications

Prod Model:	HD50QT-9
Markets:	North America,Western Europe
Export Markets:	Global
Wheel Size:	Front: 90/90-12 Rear: 90/90-12
Max Speed:	21-50km/h
Certification:	COC
Displacement:	51-125CC
Engine:	4 Stroke
Maximum Loading Capacity:	75-120kg
Fuel Tank Capacity:	5-8L
Folded:	Unfolded
Engine Siz:	49.6cc-124.6cc
Max Power:	2.30/8000

Product Description

We are professional making Motorbikes,Gas scooter, Electric motorcycles, Tricycles, atv quads, go karts etc. more than 10 years.

Having rich experience on the markets of petrol motorcycles and electric motorbike.


Technical specification:

Size: 1830X680X1140 (mm)
Wheelbase: 1290mm
Ground Clearance: 140mm
Dry Weight: 89kgs
Max. Load Mass: 150kgs
Max. Speed: 45km/h
Tire: Front: 90/90-12 Rear: 90/90-12
Brake Mode: Front: Plate Rear: Drum
Brake Operation Mode: Front: By hand Rear: By hand
Engine: JL139QMB
Engine Type: Single Cylinder Four Stroke
Bore x Stroke: Dia. 39x41.5mm
Piston Displacement: 49.5cc
Lubrication: Compress & Splash Combined Type
Max. Torque: 3.0/6000N. M/rpm
Max: Output Power: 2.3 /8000kw/rpm
Ignition: C. D. I
Started System: Electric Starter / Kick Starter
Engine Cooling: Forced Air Cooling
Battery: 12v-4ah
Fuel Capacity: 5L
Average Consumption: 2.8L/100KM

Dimension (mm)	1830*680*1140
Wheel base (mm)	1290
Net weight (kg)	83
Max load (kg)	120
Max speed (km/h)	45
Brake (Fr./Rr.)	Disk  / Drum
Wheel hub (Fr./Rr.)	STEEL
Tyre size (Fr./Rr.)	AL   90/90-12    90/90-12
Ignition	C.D.I
Engine type	1-Cylinder,4-Stroke,air-cooled
Starter system	Electric/Kick
Max power (kw/(r/min))	2.8/8500
Max torque (N·m/(r/min))	3.3/8000
