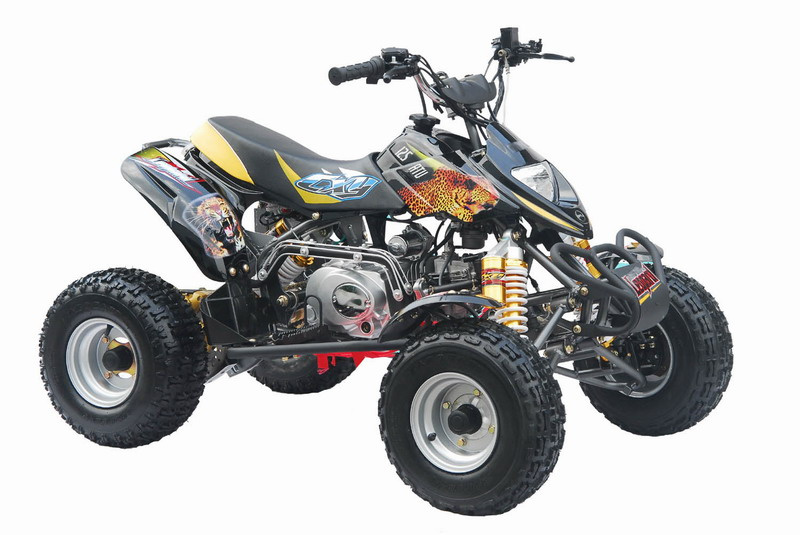

Kids Quad (VK125ST)

Specifications

Prod Model:	VK125ST

Product Description

Dimension(mm): 1260X970X880
Wheelbase(mm): 880
Min. Ground clearance(mm): 90
Seat height(mm): 610
Net weight(kg): 88
Max. Loading capacity(kg): 75
Max. Speed(km/h): ≤40
Fr. /Rr. Tread(mm): 790/660
Fr. /Rr. Tyre size: 15X5-7/15X6.5-7
Fr. Absorber style: Paratactic Air cell absorber 325mm
Rr. Absorber style: Hydraulic Spring Absorber 275mm
Brake mode: Rear Hydraulic Disk Brake (Drift)
Engine type: Horizontal Single Cylinder, air cooled, CVT with one forward gear and reverse gear
Start mode: Electric start
Valve clearance(mm): 0.6-0.8
Ignition mode: CDI
Transmission: Chain
Fuel tank capacity(L): 2.0
Oil type: 93#
Lubricating oil type: SAE10W40
Loading quantity: 20'feet: 43 units 40'feet: 78 units 40'HQ: 120 units
