Specifications
Prod Model: |
ZCW011 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wheels: |
2 |
Age: |
Adult |
Body Material: |
Aluminum Alloy |
Wheel Material: |
PU |
Product Description

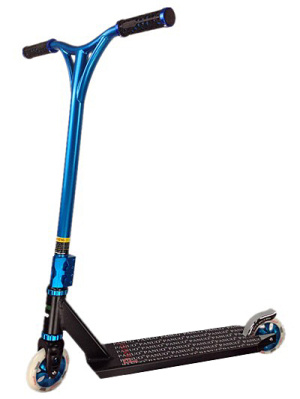

Basic infomation: Model ZCW011; Size 680*500*825mm; Gross weitht 5.44kg Net weight 4.07kg.
Scooter assembly by hand grips, bar, clamp, headset, fork, deck, wheel, brake, grip tape, compression.
Hand Grip: Model BT004; Material plastic; Length 130mm; Diameter 30mm; Aperture 22mm; Weight 0.1kg.
Bar: Model HB001; Material Iron4130; Width 500mm; Height 550mm; Diameter 31.8mm; Aperture 28.6mm; Weight 1.02kg.
Clamp: Model SZ002; Material Aluminum6061; Height 70mm; Diameter 50mm; Aperture 32mm; Weight 0.17kg.
Headset: Model WZ002; Material Ball-Bearing Steel; Height 22.8mm; Diameter 50mm; Aperture41.8mm; Weight 0.11kg.
Fork: Model QC002; Material Aluminum6061; Height 280mm; Diameter 62mm; Aperture 30mm; Weight 0.5kg.
Deck: Model DW002; Material Aluminum6061; Length 610mm; Width 125mm; Height 197mm; Weight 1.33kg.
Wheel: Model LZ003; Material Aluminum6061+PU; Width 24mm; Diameter 110mm; Aperture 22mm; Weight 0.23*2kg.
Brake: Model SC001; Material Spring 65M Steel; Length 123mm; Width 31.5mm; Height 75mm; Weight 0.19kg
