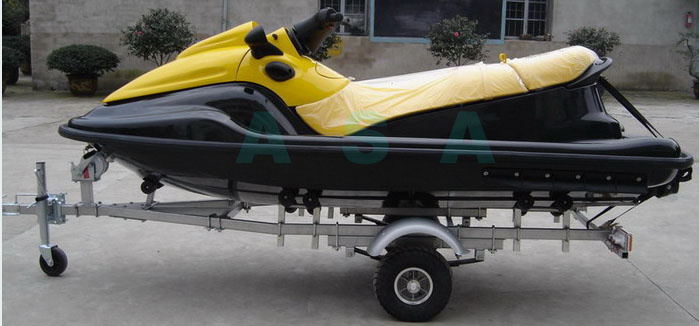

Jet Ski (503)

Specifications

Prod Model:	jet ski 503

Product Description

Jet ski 503
Specifications
Specifications for jet ski
Capacities/dimensions
Fuel tank 17 gal...4 l
Oil reservoir 6.0 gal( 5.68 l )
Load limit.Riders 500 lbs.
Load limit total 565lbs.
Length 120.3(3056cm)
Width 49.3(125cm)
Dry weight 600 lbs(272kgs)
Carton size 3300*1140*1180mm

Electrical
Alternator output 5 amp/60watt@4500rpm
Ignition system digital cdi
Spark plug type ngk bpr8es
Spark plug gap.028.
Starting system electric starter
Battery 12v.19a

Cooling
Engine cooling water cooled thermostat pop off
Overheat warning warning light/rpm limit

Engine
Engine type 700cc single cylinder, 2 stroke
Induction type case reed
Exhaust system water cooled/injected 700h
Lubrication oil injected
Oil type gas
Cylinders 2
Bore 81mm
Stroke 68mm
Displacement 701
Horsepower 95
Rpm limiter operation 7200+-100.

Propulsion
Impeller stainless steel 3 blade(+)
Propulsion jet drive
Jet pump type extended big mouth, single stage axial flow
Transmission direct drive
Minimum water level for jet pump 2 feet(60cm)
Impeller diameter 5.83 in...80cm

Trailer descripion
Overall dimensions(l*m)
3300*1100mm
Payload dimensions(l*m) 3348*1300mm
