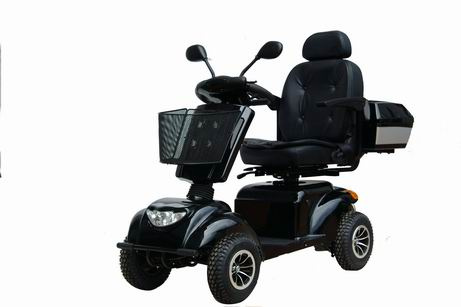

Invalid Scooter (JH01-2A)
| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1 /Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | JH01-2A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: | CE |
| Folded: | Unfolded |
| Voltage: | 24V |
| Load Capacity: | 100-200kg |
| Climbing Capability: | 12?? |
Product Description
His model of mobility scooter features streamline appearance withHeadlight, front and rear turning lights.
It can run on grassplot and flat ground very freely for indoors or outdoors.
With battery energy indicator, oval waterproof touched control panel which highlight easy operation.
Going forward and backward easily controlled by sway type accelerator lever.
Turning lights, horn and hazard lights can work once pressing the button. Max. Speed can reach up to 12 -15km/h (optional).
The Solid, compact and reasonable frame with two main crossbeams, which gives the scooter high load capacity, Max. Load capacity: 180kg.
Front wheels equipped with JIAHE independent suspension system, matching the rocker shock absorber system for rear wheels, Which provide the driver comfort, stability and safety.
Specification:
Dimensions: 1390X 650X 1080mm
Ground clearance: 165mm
N. W.: 131kg (including 2 batteries 34kg)
Range per charge: 40-48km
Max. Speed Forward: 15km/h
Max. Speed Backward: 6km/h
Climbing capacity: 15 degrees
Max. Load capacity: 220kg
Turning radius: 1.37m
Front Tires: 4.10-3.50-6
Rear Tires: 4.10-3.50-6
Motor: 950W
Controller: 120A PG controller
Battery: 12V55AH X 2
Charge time: 6-8h
Container Loading
20'Container = 30 units,
40'Container = 46 units,
40'HQ Container = 64 units
Perfectly luxury seat with stable height adjustable lock system. Seat can be rotated 90 degree toward left to right side; Backrest can be thoroughly folded forward and backward 110 degree dumping. The width of the flip up armrest can be adjusted freely.
Motor power: 500W(scheme A); 650W(scheme B).
Front wheel: 13 inches; Rear wheel: 13 inches
Equipped with Curtis controller, the electronic instruments and battery energy indicator are of Curtis technique.
Optional parts: Golf shelf, crutch rack, cup holder, rear basket, bumper, awning, dust proof, oxygen tank holder, etc.
