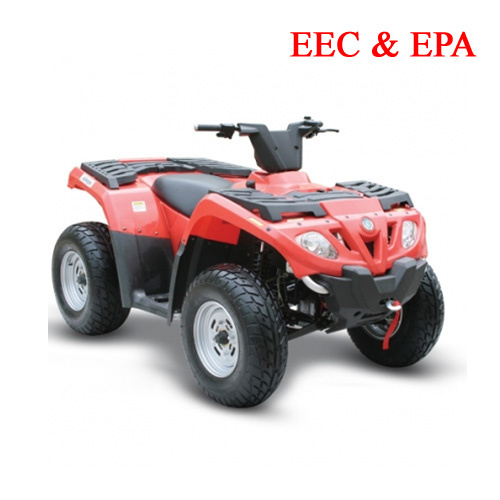

Home Jinhua Wuchen Green Co., Ltd. High Quality of 300ccatv with EEC Certificate (GBTST300)
High Quality of 300ccatv with EEC Certificate (GBTST300)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 12/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | GBTST300 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Quality Of 300ccatv With EEC Certif: | Water Cooled Cvttrasmission |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 300CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
Product Description
HIGH QUALITY OF 300CCATV WITH EEC CERTIFICATE (GBTST300)(with EEC and EPA)Available color: Red, blue
Production size: (mm) 2230*1275*1205
Wheelbase(mm): 1310
Front track: 1045mm
Rear track: 1018mm
Ground clearance: 180mm
Engine type: 276CC, single cylinder, water-cooled, 4-stroke
Bore*stroke: 72.5mm*66.8mm
Corrected compression ratio: . 10: 1
Max output: 14kw/7500rpm
Max torque: 22.7Nm/5500N. M/r/min
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Automatic(C. V. T system)
Maximim load: 200KG
Fuel tank: 16.0L
Climbing: 20-25
Top speed: 75KM/h
Front/Rear brake: Hydraulic disc, Right foot control
Front tire: AT25× 8-12
Rear tire: AT25× 10-12
Final drive: Shaft Drive
N. W.: G. W.: 277kg 336kg
Carton size and quantities: 2315*1305*860mm Qty/40'HQ: 27 Qty/20GP: 8
