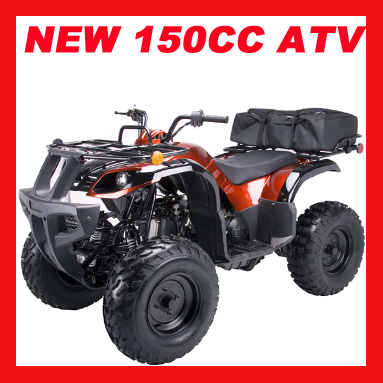

High Quality 150cc Four Wheeler ATV (MC-335)
| Price: | US $ 780-820/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | MC-335 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | Single Cylinder,150cc,4-Stroke,Air Cooled,CVT Syst |
| Color: | Red/Yellow/Blue/White/Camo |
| Warranty: | 6 Month |
| Ignition Type: | Cdi |
| Vehicle Dimensions: | 870 X1010 X 1060mm |
| Front Tire Spec: | 23 X 7-10 |
| Rear Tires Spec: | 22 X 10-10 |
| Fuel Tank Capacity: | 4.8 L |
| Start Method: | Electric Start |
| Use: | Youth |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 150CC |
| Structure: | Without Door |
| Maximum Speed: | <50 km/h |
| Brake Type: | Disc Brake |
| Condition: | New |
| Power: | 500-800W |
| Brand: | Bode |
Product Description
High quality 150cc four wheeler atv(MC-335)Engine type: Single cylinder, 150cc, 4-stroke, air cooled, CVT system
Displacement: 150cc
Cooling: Air-cooled
Max horsepower: 6.0kW/8, 000r/min
Max torque: 7.0N. M/5, 500r/min (N. M/r/min)
Bore*stroke: 57.4x57.8mm
Max speed: 58km/h
Ignition: CDI
Starting system; Electric start /Kick start
Battery: 12V, 9Ah
Engine oil: 0.9L
CHASSIS ETC:
Clutch: Automatic clutch
Transmission: Chain
Driving wheel: Rear wheel force
Front Suspension: Double a-arm
Rear Suspension: Single arm
Brakes: Front: Drum / Rear: Disc brake
Brake operation: Disc brake
Tires, front/rear: 23 x 7-10 / 22 x 10-10
Weight, G. W. /N. W: 90kg /108kg
Max load: 50kg
DIMENSIONS:
Wheelbase: 1215mm
L*W*H: 1, 870 x1010 x 1060mm
Height to seat: 760mm
Min ground clearance: 165mm
Carton size: 1540 x 810 x 750mm
Shipping info: Qty/40' HQ: 57pcs
Atv, Quad go kart and Buggy HS code: 8703101100
