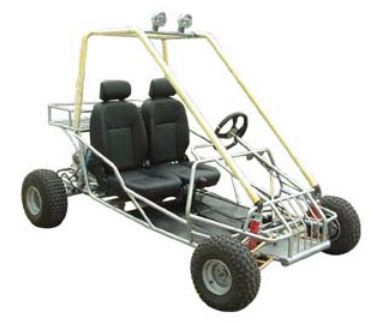

Go Karts 150CC (PL-GK150C)

Go Karts 150CC (PL-GK150C)
Price: Negotiable
Min Order: 1

Specifications

Prod Model: PL-GK150C

Product Description

Go Karts 150CC Model Number : PL-GK150C (New design Go kart 150cc, air-cooled, 4-stroke)
1) Dimensions(L x W x H): 1400 x 950 x 930mm
2) Dry Weight: 260kg
3) Max Speed: =<70km/h
4) Climbing Ability: =<15°
5) Front Tire: 19 x 7-8mm
6) Rear tire: 22 x 10-10mm
7) Wheelbase: 1740mm
8) Front wheelbase: 1180mm
9) Rear wheelbase: 1110mm
10) Ground clearance: 200mm
11) Swerve Radius: 3000mm
12) Seat Height: 450mm
13) Engine: Single-cylinder, 4-stroke
14) Bone x stroke: 52.4 x 57.8mm
15) Displacement: 149ml
16) Rating power: 7.8KW/7500r/min
17) Max. Torque: 10.5N.m/6000r/min
18) Compression rate: 10.3:1
19) Idling: 1500±100r/min
20) Transmission: shift drive
21) Starter mode: electric
22) Cooling mode: water-cooled
23) Ignition: C.D.I
24) Lubrication: pressure and splash
25) Clutch type: Wet type, multi-plate
26) Spark plug: NGK
27) Carburetor: KEIJIN
28) Brake system: Drum/double-disc
29) Battery: 12V-17Ah
30) Headlight: Double/12V-15W
31) Oil capacity: 1.0L
32) Oil type: SAE15W-40SF
33) Safety fuse: 12V 15A
34) Fuel tank: 8.0L
35) Quality Standard: QS9000, ISO9001:2000, CCC approval
Packing: wooden/iron case in paper carton
Carton dimensions: 1450×980×1000mm
