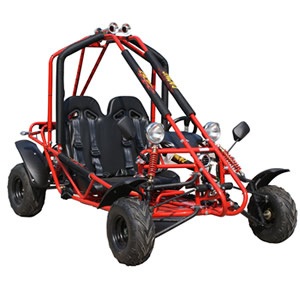

Go Kart (Gk110-N)

Specifications

Prod Model:	GK110-N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Maximum Speed:	<60 km/h
Start-up:	Electric
Transmission:	Chain
Certification:	EPA
Displacement:	110CC

Product Description

Model Master 110CC GOKART

Model# 110CC GOKART-N
Items specification
Engine Type single cylinder, four stroke, top valve
Engine Brand yonghe
Engine Displacement 106.7
Cooling System air cooled
Bore and Stroke 2.06*1.95(inch)
Compression 8.0: 1
Maximum Power 4.7kw/7000(1± 5%)
Maximum Torque 6.9 Nm/5000(1± 5%)
Carburetor Brand/Type JK/PZ19L-037C
Starting Method electiric
Ignition Type CDI
Motor Oil Type 10W-40
Gear Oil Type 10W-40
Oil Lubrication Type 15W/40
Battery Size 12V 6.5Ah
Clutch Type Automatic waterish multi-piece
Transmission CVT, Primary transmission ratio: 4.06
Gear Shift Pattern F-N-R
Driving System 2X4
Final Drive chain drive
Packing Dimension (L*W*H) 66.14*40.94*21.65(inch)
Vehicle Dimension (L*W*H) 74.41*46.85*48.82(inch)
Wheel Base 58.66(inch)
Track Distance (Front) 39.37(inch)
Track Distance (Rear) 29.53(inch)
Ground Clearance 7.48(inch)
Seat Height 34.25(inch)
Front Seat Edge to Paddle Distance Range
16.93(inch)
Gross Weight (lb) 267 lbs
Net Weight (lb) 244 lbs
Maximum Speed (MPH) 48KM/H
Maximum Load (lb) 200lbs
Climbing Ability (Degree) 40Degree
Turn Radius (in) 3 m
Fuel Economic (Mile/Gallon)
Fuel Capacity (gallon)
Reserve Fuel
Brake Type (Front) no
Brake Type (Rear) disc brake
Swing Arm Type (Front) Dual A-arm
Swing Arm Type (Rear) Swing arm
Shock absorber Type (Front) adjust, Hydraulic
Shock absorber Type (Rear) adjust, Hydraulic
Tire Size (Front/Rear) 145*7-6/ 16*8-7
Tire Pressure (Front/Rear) 24/1.7
Steering Control Mechanism Throttle, brake, gears shift, stering wheel etc
Rim iron
Seat Type Bench Contour Seats
Seat Belt Type three point seat belt
Speed Limiter Type yes
Engine Kill Switch yes
Odometer Type no
Audio System no
Gear Indicator no
RPM Meter no
Fuel Gauge no
Voltage Gauge no
Battery Charger no
DC Outlet no
Head Light yes
Hi_Low Beam Switch no
Tail Light no
License plate light no
Signal Light yes
Horn yes
Reverse Syrian no
Central Rear View Mirror no
Side Rear View Mirror yes
Other Accessories mudguard, block net, bumper, sponge jacket for side bar
Q'Ty for container 56PCS/40HQ

Assembly Spindle, shock absorber, canopy, steering wheel, Front and Rear Wheels, Battery, gas tank, swing arm, rear mirror
