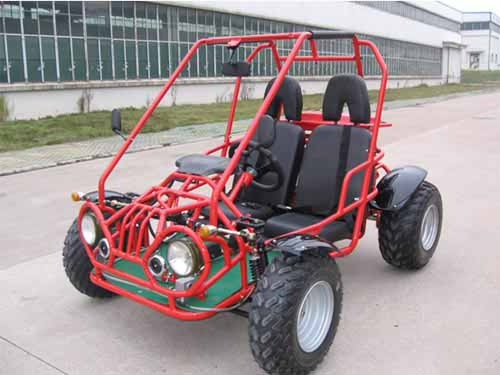

Home Yongkang Tap Vehicle Manufacturing Co., Ltd. Go Kart (GK-005)
| Prod Model: | GK-005 |
|---|
Product Description
1) Engine: single cylinder, 4-stroke, air-cooling2) Transmission: Automatic CVT With Reverse
3) Bore x Stroke (mm): 57.4 x 57.8
4) Piston Displacement (cc): 150
5) Compression Ratio: 9.2:1
6) Maximum Power (kw/r/min): 6.8KW/7000-7500RPM
7) Maximum Torque (N.m./rpm): 9.0/5500
8) Starting System: Electric
9) Gearing: Chain
10) Product dimensions: 2230 x 1300 x 1460mm
11) Wheelbase (mm): 1600
12) Front Track (mm): 1180
13) Rear Track (mm): 970
14) Seat Height (mm): 450
15) Min. Turning Radius (mm): 2500
16) Ground Clearance (mm): 190
17) Rider Capacity: 2
18) Brake (Front/Rear): Hydraulic Disc/left Foot Control
19) Tyres: a) Front: AT 19 x 7.0-8
b) Rear: AT 22 x 11-10
20) Ignition Type: C.D.I
21) Fuel Tank Capacity (L): 8
22) Oil Consumption (L/100km): 2.8
23) Front Suspension: Independent Dual A-Arm
24) Rear Suspension: Swing Arm
25) Parking Brake: Rear Wheel
26) Max. Speed (km/h): 60
27) Max. Load Capacity (kg): 150
28) Valve Train: Cam Gear
Packing:
Carton dimensions (mm): 2250 x 1180 x 860
Dry Weight (kg): 227
Gross Weight (kg): 247
Conveyance: Qty/40' HQ: 30pcs
Yongkang Tap Vehicle Manufacturing Co., Ltd. is specialized in manufacturing ATV, dirt bike, go kart, and other special vehicles. Now the power of our ATV is from 50cc to 250cc. We own a professional and efficient R&D team, they are striving for developing more ATVs which have more large power. Our products have passed ISO9001: 2000 system, EEC, CE. All products are sold well in EU, U. S. A & UK market and become one of the most popular leisure transportation tools in modern life for high quality and excellent after service.
