Prod Model: |

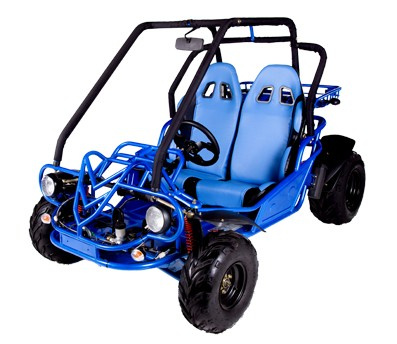

ZG 150FS |
Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
Transmission: |
Chain |
Start-up: |
Electric |
Certification: |
EPA |
Maximum Speed: |
60-90 km/h |
Displacement: |
50-700CC |
Product Description
Engine type: 150CC, single cylinder, 4 stroke, Air cooling, Automatic with reverse
Rating Power: 6.5kw/7500rpm
Max torque: 9.0N. M/5500rpm
Transmission mode: Chain drive
Gas tank capacity/Fuel: 6 L/Unleaded gasoline above No. 90
Start way: Electric start
Battery: 12V. 9Ah
Max. Speed: 60 km/h
Wheel bases: 1610mm
Distance between wheel: Front: 1190 mm; Rear: 960 mm
Front/Rear tire: 19X 7- 8/ 22X11-10
Brake(front/rear): Hydraulic brake
N. W. / G. W.: 243 kg/298kg
Max loading capacity: 160 kg
Overall size: 2240X1390X1440mm
Carton size: 2250X1300X650mm
Conveyance: Qty/20' FCL: 12 PCS; Qty/40' HQ: 36 PCS(take off the wheels)
