Home Yangchao Vehicle Co., Ltd. Go Kart (CY-203)
Specifications
| Prod Model: | CY-203 |
|---|
Product Description

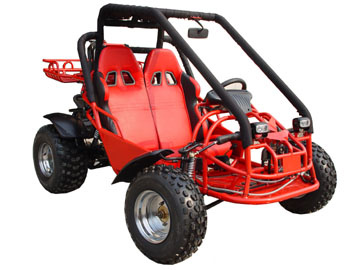

CY-203 150CC AIR COOLED GO KART1) Dimensions (L x W x H): 2430x1400x1465mm
3) Wheelbase: 1480mm
4) Dry Weight: 265kg
5) Max seed: 70km/h
6) Front and rear brakes: Hydraulic disc
7) Engine: Left foot control
8) Type: Water-cooled 4 stroke 1cylinder
9) Engine model: 172QMJ
10) Bore x stroke: 72 x 60
11) Front Tire: 21x 7.0-8
12) Rear Tire: 22 x 11-10
13) Displacement: 244ml
14) Front Suspension: Dual A-arm with 1.8" (45mm) of travel
15) Rear Suspension: Spring over shock with 2.4"(60mm) of travel
16) Maximum Power: 12.5kw/6500rpm
17) Maximum Torque: 17.6/6000Nm/r/min
18) Starting: Electric
19) Ignitions: CDI
20) Transmission: Automatic CVT
21) Fuel Brand: RQ-90(Leadless);
22) Load capacity: 180kg
23) Fuel Tank: 9.5L
24) Packing: 1pc/box with iron grill
