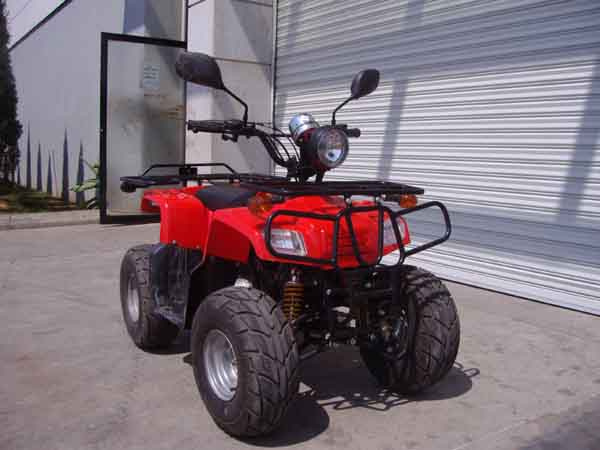

GH-ATV110-1 EEC

Specifications

Product Description

Engine: 110cc, singly cylinder, 4 stroke, natural air cooled
Length*width*height: 1230*710*830
Load: 75kg
Weight: 79kg
Wheelbase: 750mm
Wheel tread: Front: /515 rear: 570
Seat height: 560mm
Ground clearance: 80mm
Tire: Front wheel 16*8-7; ; Rear wheel 16*8-7; ;
Transmission mode: Chain
Starting system: Electric starting
Max. Power: 2.3kw /7000rpm
Grade ability: ≥17'
Max. Speed: 40km/h
Fuel tank capacity: 2l
Carton dimensions: 1160* 790 *660
G. W. /n. W.: 79/93kg
Container: 42pcs/20'Qty 90pcs/40'Qty 120pcs/40'HQ
