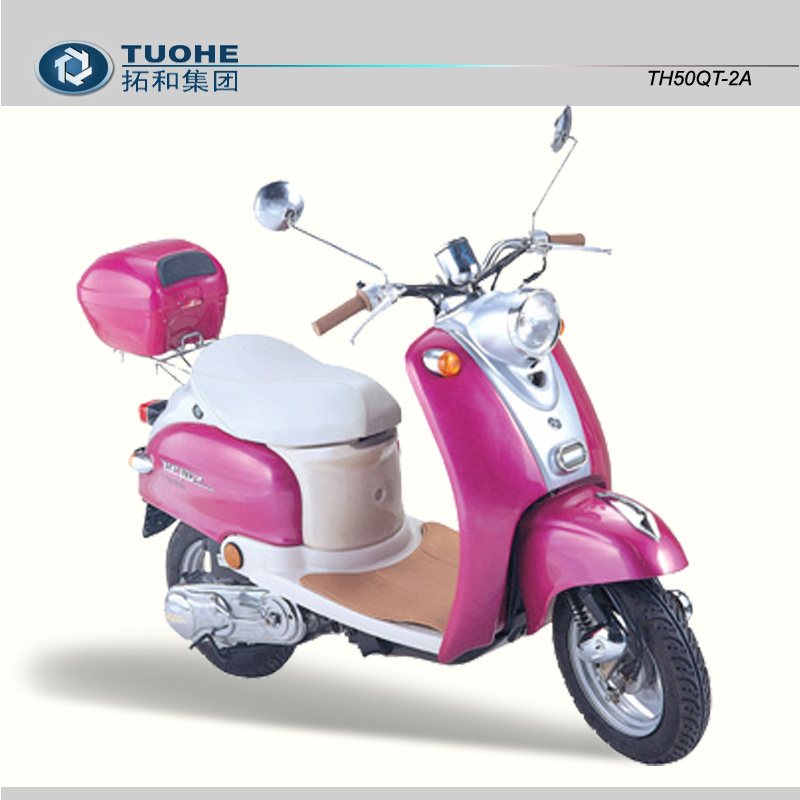

Gasoline Scooter (TH50QT-2A)
| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1 /Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | TH50QT-2A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | 4 Stroke |
| Certification: | CCC & ISO9001 |
Product Description
Dimension: 1615L× 630W× 1048h mmEngine model: Single cylinder, 4-stroke, horizontal, air-forced cooling.
Engine displaceme: 50CC
Compression ratio: 10.5 to 1
Bore× Stroke: 39× 41.4 mm
Standard power: 2.4kw/7500r/minute
Idling: 1700 r/minute
Spark plug: Cr7hsa
Ignition: C. D. I.
Trigger: Combination of electronic and kick
Lubrication: Splash oiling by pressure
Volume of sump: 0.9L
Maximum torque 3.1 /6200 n. M/r/minute
Wheelbase: 1160 mm
The permit of maximum payload: 75 kg
Net weight: 75kg
Maximum speed: 50 km/h
Clearance of the lowerest and ground: 85 mm
Climbing ability: 10° ≥
Minimum turning radius: 3500 mm
Distance of brake: ≤ 7 (30km/h)
Tire: Fore 80/90-10 175kpa rear 80/90-10 200kpa
Shock absorber: Hydraulic absorber
Clutch: Automatic centrifugal
Ways of speed changing: Stepless by belt
Power train: By gear and belt
Type of brake: Hydraulic brake system fore disc by hand rear drum by feet
Fuel tank capacity: 8L
Fuel type: 90# gasoline
Locking system: Electronic lockup agaist burglar
Battery: 12V 7A
Fuse: 7A
Cover material: ABS
Stand-by case:
