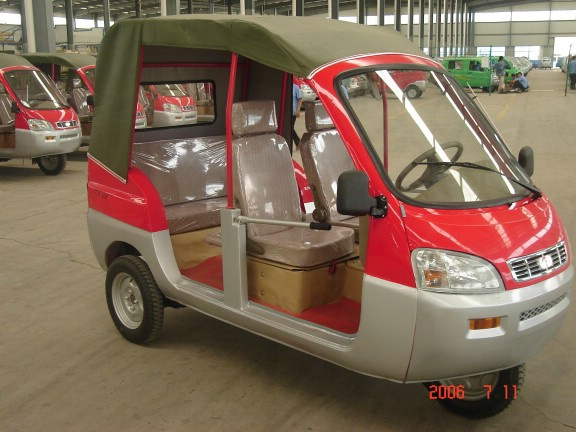

| Prod Model: | XF200ZK-3A |
|---|
Product Description
ITEM SPECIFICATIONDimension Dimension(LxWxH) 2850X1350X1660 mm
Wheeel Base 1850 mm
Tread 1150mm
Ground Clearance 170 mm
Min.Turning Diameter 6400 mm
Approach angle 18
Weight Curb Weight 350kg
Front axle loading Capacity (Front/Rear) 1927 / 2689 kg
Rated Load capacity 300kg
Rated passengers 4(including driver)
Fuel tank 12L
Engine Model ZS163ML
Type Single-cylinder 4-stroke water-cooling
Bore x stroke 63.5 x62.2 mm
Displacement 197ml
Compression ration 10.5:1
Rated power 10.3/7500[kw/(r/min)]
Max.Torque 14.2/6000[N.M/(r/min)]
Min Fuel consumption 354 g/kw.H
Idle rotate speed without loading 1400 r/min
Ignition CDI
Start Method Electric
Lubrication type Press spray
Oil Type SAE 15W/40
Fuel Gasoline
Carburetor PZ30
Air filter Dry
Vehicletype Tyre (Front / Rear) 4.00-12 /5.00-10
Air pressure 250/250 Kpa
Brake (Front/Rear) Disk/ Drum
Brake control by Foot/Foot
Shock absorber Front:Single Rear:Dual
Electric system Spark plug D8EA
Head lamp 12V 35W/35W
Turning light 12V 10W
Tail light/Brake light 12V 10W/10W
Speedometer panel indicator 12V 3.5W
Fuse 20A
Battery 12V28AH
We KMC is a leading automobile manufacturer and exporter in China, we have advanced pressing lines, coating lines, welding lines and other modern equipment. Now it has the production ability of 70 thousand vehicles per year. It has got the quality certificate of ISO9001 and passed the approval of CCC in China. The quality of our products is excellent. With the best reputation, our products are warmly welcomed by all the customers both domestic and abroad. Our market share in China is up to 30% and our products have been export to Southeast Asia, Russia, Mid-east, African, Central America.
