Specifications

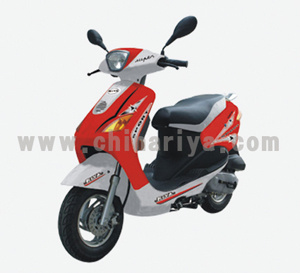

Prod Model: |
RY50QT-4C |
Maximum Loading Capacity: |
≥120kg |
Engine: |
4 Stroke |
Displacement: |
51-125CC |
Max Speed: |
>50km/h |
Product Description
Seat: (single seat or double seat) according to homologation double seat
Mass of the vehicle (with bodywork) in running order: 106kg
Unloaden mass of the vehicle 75kg
Technically permissible maximum laden mass: 150kg
Technical permissible mass on each axle: 100kg
Maximum Speed: 45(50cc), 90(125cc), 120(150cc)km/h
Maximum power at rpm 3.1Kw/8000min-1
Maximum power (power/mass) of the vehicle in running order: 0.0352Kw/kg
Cylinder capacity: 49.6cm3
Maximum torque at rpm 4.01n. M/5500r/min Nm
Working principle 4stroke
Cooling type force wind
Fuel: M
Lubrication: 15W-20
Clutch type automatic
Transmission type CVT
Noise: Stationary (at idle speed rpm) 84dB
At drive speed 70dB
Starter type electric/foot
Brake DISK/Drum
Wheels and tyres: Front: 120/70-12
Rear: 120/70-12
Vehicle Dimensions wheel base: 1190mm
Length: 1690mm
Width: 650mm
Height: 1025mm
Exhaust emissions: 50/125/150mg
Homologation number COME OUT BEFORE Canton FAIR
