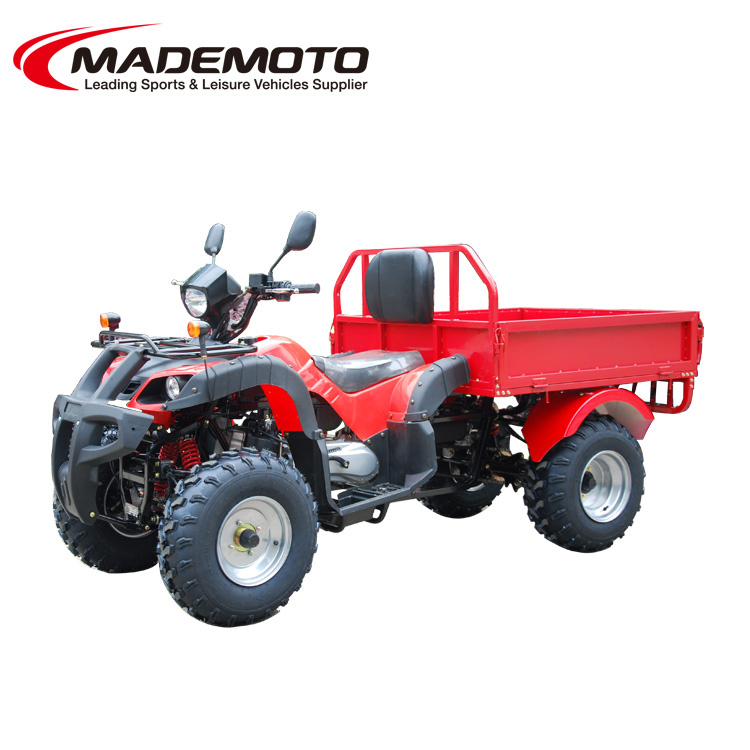

Home Wiztem Industry Company Limited Gas-Powered 4-Stroke 150cc Air Cooled ATV
Gas-Powered 4-Stroke 150cc Air Cooled ATV
| Price: | US $ 1658.71/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 5/Piece |
| Pay Type: | T/T,Western Union |
Specifications
| Prod Model: | AT1505-B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Torque: | 10nm/5500rpm |
| Max Power: | 9.3kw/7500rpm |
| Starting System: | Electric Start |
| Battery Spec: | 12V,9ah |
| Front Tire Spec: | 21X7-10 |
| Rear Tires Spec: | 20X10-10 |
| Vehicle Dimensions: | 250X100X118cm |
| Wheel Base: | 1000mm |
| Seat Height From Ground: | 70cm |
| Ground Clearance: | 160mm |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 200CC |
| Structure: | Without Door |
| Maximum Speed: | <50 km/h |
| Brake Type: | Brake (Front/Rear):Drum/Disc |
Product Description
ATVGas-Powered 4-Stroke 200CC Air Cooled Farm Version Veicle
AT1505-B
Key Specifications:
1. Engine type: 200cc, 4 storke
2. Max torque: 10Nm/5500rpm
3. Max power: 9.3kw/7500rpm
4. Ignition type: CDI
5. Transmission: Automatic with inside reverse gear
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 21x7-10 rear tires spec: 20x10-10
12. Vehicle dimensions: 250x100x118cm
13. Wheel base: 1000mm
14. Seat height from ground: 70cm
15. Ground clearance: 160mm
16. Load capacity: 350kg
17. Fuel tank capacity: 8L
Package:
18. Net weight: 185kg
19. Gross weight in carton: 200kg
20. Container: 20pcs/20ft, 30pcs/40ft, 36pcs/40HQ
