Specifications
Prod Model: |
TR-9 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Total Size: |
3300*1350*1350 |
Loading Capacity: |
1 - 2 Ton |
Engine Type: |
4-Stroke |
Displacement: |
126-250CC |
Certification: |
CCC |
Type: |
Cargo Motorcycle |
Condition: |
New |
Fuel: |
Gas / Diesel |
Product Description

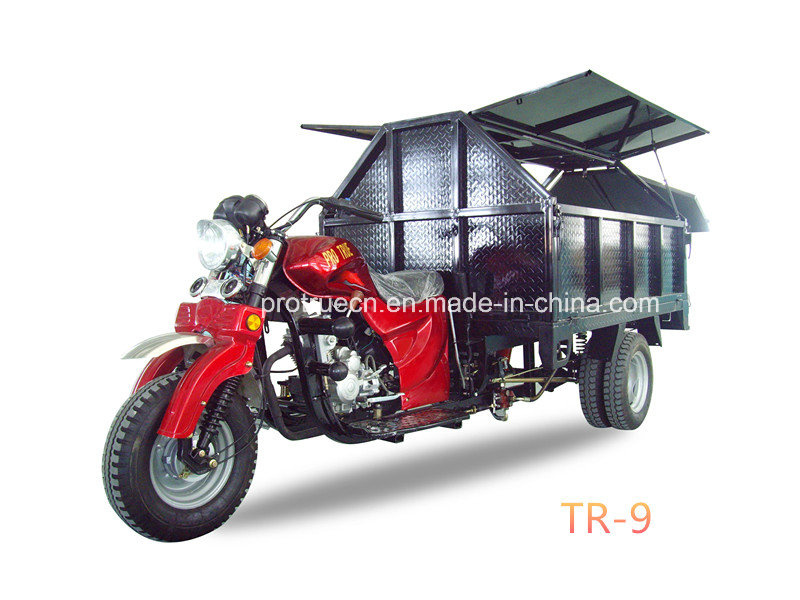

Garbge Tricylce With Hydraulic Dump System
Double Rear Wheel
Model: TR-9
Dimensions of vehicle (mm): 3300*1350*1350
Dimensions of cargo box (mm): 1730*1350*1200
Engine: 200cc, 4 stroke, air-cooling
Fuel consumption(km): 3.5L/100
Loading capacity (kg): ≤ 1500
Max speed (km/h): ≤ 60
Fuel tank capacity (L): 13.5L
Start mode: Kick / electric
Gear of gearbox/reverse: 5/1
Real axle: Half / full floating
Driving type: Shaft transmission
Tire (F/R): 5.00-12 / 5.00-12
Brake Type: Drum
Qty in 40HQ (units): 40(CKD)
Color: Blue/Red/Black/Yellow/Other
Engine |
Model |
162FMJ |
|
Brand |
Zongshen / Lifan |
|
Type |
4-stroke, air cooling |
|
Displacement |
200cc |
|
Ignition method |
CDI |
|
Starting method |
Electric / Kick |
Performance parameter |
Fuel Tank Capacity |
13.5L |
|
Brake front/rear |
Disc / Drum |
|
Transmission |
Shaft drive with reverse |
|
Normal speed |
60~80km/h |
|
Fuel consumption(100km) |
3.5 L/100km |
|
Noise |
45~60db |
|
Gear |
5 forward speed, 1 reverse speed |
|
Wheel(Front/Rear/Spare) |
5.00-12/5.00-12 |
Weight |
Gross weight |
350kg |
Load capcity |
Normal load weight |
1500kg |
Cargo Box Size |
1730*1350*1200mm |
Total Size |
3300*1350*1350mm (L*W*H) |
Loading QTY |
CKD 40pcs/40HQ |
Color |
Blue/Red/Black/Yellow/Other |
