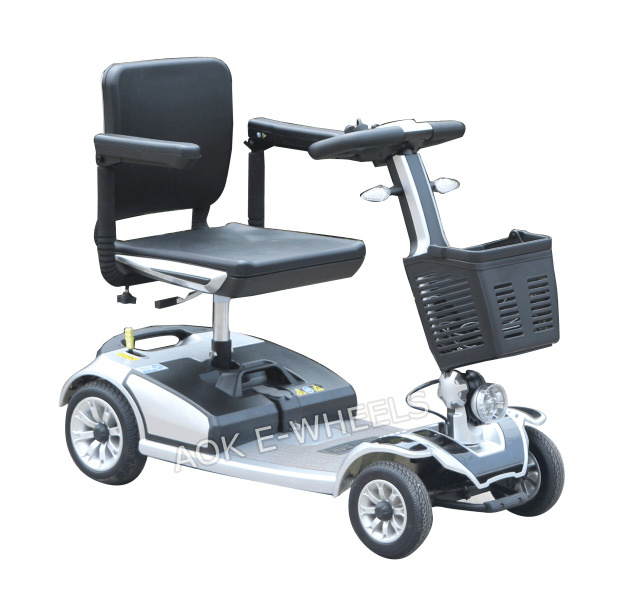

Four Wheels Electric Mobility Scooter with Solid Tire (ES-030)
| Price: | US $ 760-836/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
Specifications
| Prod Model: | ES-030 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tire: | PU Material Solid Tire Made From Kexin in Taiwan |
| Turning Radius: | 125cm |
| Climb Degree: | 12degree |
| Gound Clearance: | 6.8cm |
| Basket Load Ability: | 6.8kgs |
| The Lamp: | LED Headlight , LED Turning Light, LED Rear Lights |
| Seat: | Cover by PU Material and Adjust 360 Degree |
| Color: | Red, Silver, Blue |
| N.W/G.W: | 64kgs/56kgs(24V20ah) |
| Export Carton Dimension: | 117X58X52cm |
Product Description
Four Wheels Electric Mobility Scooter with Solid Tire (ES-030)Specification:
1.Turning radius:125CM
2.Max speed:7.8km/h (4.8MPH)
3.Driving distance: 25KM
4.Climb degree :12degree
5.Gound clearance :6.8CM
6.Wheel size : front 8" rear :9"
7.Tire: PU material solid tire made from kexin in taiwan
8.Battery box :split-type box,independent charge
9.Cable:pulg from molex in,USA,cable with UL certification
10.Brake systems : Electric magnetic brakes
11.Max Loading :136KGS
12.Basket load ability :6.8KGS
Performance & Main components:
1.Motor: 24V 200W
2.Controller panel: made from curtis in USA
3.With protectors :overload protector and low voltage protector
4.Battery: 12V 20AH, 2PCS/SET sealed lead-acid battery
5.Charger: 24V 2.5A ,split-type,wider band universal.110V-240V
6.Charging time: About 8hours
7. The lamp: LED headlight , LED turning light, LED rear lights &Emergency lights
8. Seat: cover by PU material and adjust 360 degree
9.Color: Red , Silver , Blue
Packaging:
Unit packaging: Each in Color Box
Packing : Each in a carton box
N.W/G.W: 56kgs/64kgs(24V20AH)
Qty / Export carton: 1 pc /ctn
Export carton dimension: 117X58X52CM
1x20'footer FCL quantity: 80 pcs
1x40'footer FCL quantity: 160 pcs
1X40'HQ: 200pcs
Specification:
| Turning radius | 125CM |
| Max speed | 7.8km/h (4.8MPH) |
| Driving distance | 25KM |
| Climb degree | 12degree |
| Gound clearance | 6.8CM |
| Wheel size | front 8" rear :9" |
| Tire | PU material solid tire made from kexin in taiwan |
| Battery box | split-type box,independent charge |
| Cable | pulg from molex in,USA,cable with UL certification |
| Brake systems | Electric magnetic brakes |
| Max Loading | 136KGS |
| Basket load ability | 6.8KGS |
Performance & Main components:
| Motor | 24V 200W |
| Controller panel | made from curtis in USA |
| With protectors | overload protector and low voltage protector |
| Battery | 12V 20AH, 2PCS/SET sealed lead-acid battery |
| Charger | 24V 2.5A ,split-type,wider band universal.110V240V |
| Charging time | About 8hours |
| The lamp | LED headlight , LED turning light, LED rear lights &Emergency lights |
| Seat | cover by PU material and adjust 360 degree |
| Color | Red , Silver , Blue |
Packaging:
| Unit packaging | Each in Color Box |
| Packing | Each in a carton box |
| N.W/G.W | 56kgs/64kgs(24V20AH) |
| Qty / Export carton | 1 pc/ctn |
| Export carton dimension | 117X58X52CM |
MOQ:20PCS
Business Terms:
1.The price above are based on MOQ.
2.Lead time:7 days for sample order.25 days for one container.
3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed.
4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are also accepted.
Warranty:
8 months for battery;
1 year for motor;
1 year for controller;
1 year for charger.
(The warranty is based on broken not made by human being.)
